Apraksts

• Manufacturer CANAL ELECTRONIC
• Type of switch microswitch SNAP ACTION
• AC contacts rating @R(at resistive load) 1A / 125V AC
• at resistive load
• Switches features without lever
• Contacts configuration SPDT
• Contacts configuration
• Max. contact resistance: 50mΩ
• Switching method(the position in bracket indicates momentary position.) ON-(ON)
• The position in bracket indicates momentary position.
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for PCB, straight
• Body dimensions 12,8x5,8x6,5mm
• Mechanical durability 1000000 cykli
• Operating temperature -25...65°C
• Operating Force 0,7N
• Electrical life 30000 cykli
• Terminal pitch 5,08mm
• Terminals plating silver plated
• Contact material silver alloy
• Terminals material nickel

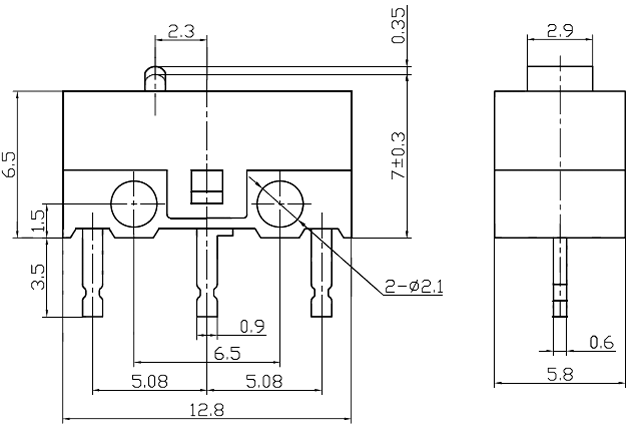

• DimensionsPaskatīt
• Masa bruto0.54 g

Parametri

SPDT
ON-(ON)
IP40
Bez sviras
12.8x5.8x6.5mm
1A/125VAC

Papildu dokumentācija
