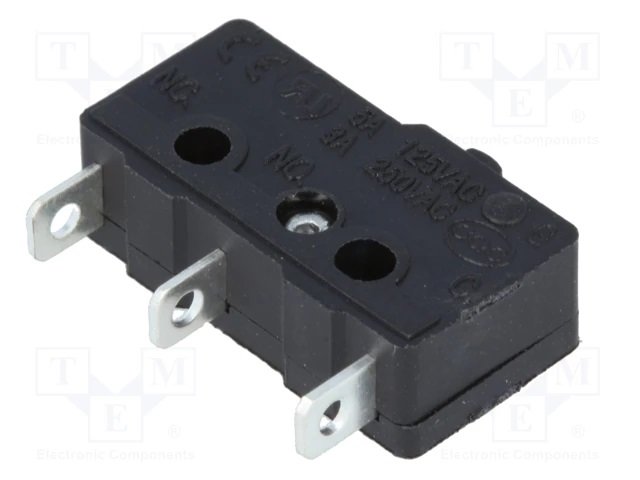

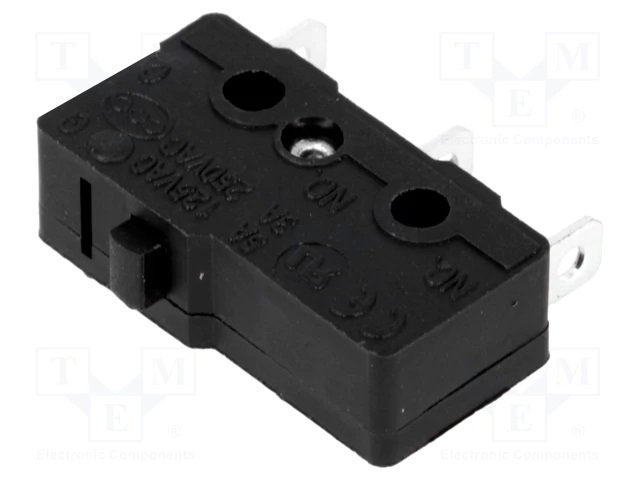

Apraksts

• Manufacturer HIGHLY
• Type of switch microswitch SNAP ACTION
• Switches features without lever
• Contacts configuration  SPDT
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Max. contact resistance: 30mΩ
• Switching method  ON-(ON)
• (the position in bracket indicates momentary position.)
• Number of positions 2
• Stable positions number 1
• IP rating IP40
• Leads for soldering
• Body dimensions 19.8x6.4x10.2mm
• Mechanical durability 1000000 cycles
• Operating temperature -25...70°C
• Operating Force 1.5N
• Electrical life 100000 cycles
• Min. insulation resistance 100MΩ
• Terminal pitch 7.3mm
• Additional information
• Gross weight: 1.98 g
• Manufacturer part number: SS0500A

Parametri

SPDT
3A/250VAC
ON-(ON)
IP40
Bez sviras
19.8x6.4x10.2mm
