Apraksts

• Specification
• Switch type microswitch
• Contacts configuration SPST-NO
• DC contacts rating
• (at resistance load) 0.1 A / 30 VDC
• Switching method OFF-(ON)
• Stable positions number 1-position
• Sealing IP67
• Leads for PCB, straight

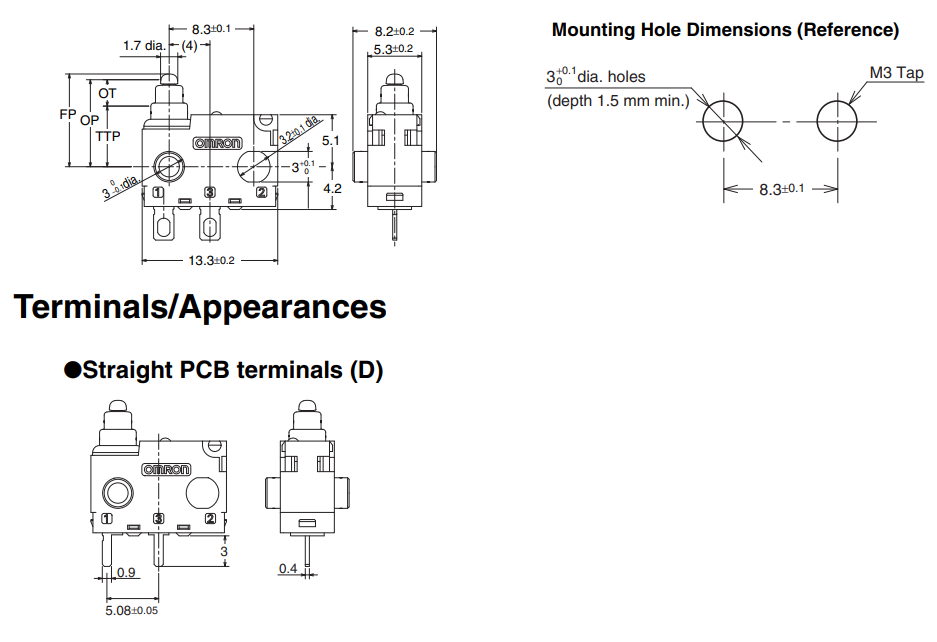

• Body dimensions 13.3 x 5.3 x 9.3mm
• Mechanical durability 500000cycles
• Operating temperature -40...85°C
• Switching torque 1.5N
• Electrical life 200000cycles
• Max. contact resistance: 100mΩ;
• Contact plating gold plated
• Terminal pitch 5.08mm

Parametri

SPST-NO
0.1A/30VDC
OF-(ON)
IP67
Bez sviras
13.3x5.3x9.3mm

Papildu dokumentācija
