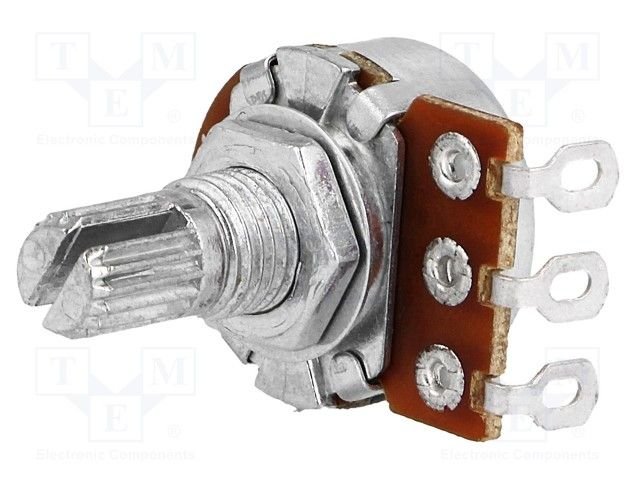

Apraksts

• Manufacturer SR PASSIVES
• Type of potentiometer shaft
• Kind of potentiometer single turn
• Resistance 22kΩ
• Power 125mW
• Tolerance ±20%
• Mounting on cable
• Shaft diameter 6mm
• Shaft length 9mm
• Characteristics linear
• Body dimensions Ø17x9.2mm
• Thread length 6mm
• Body material metal
• Potentiometer features mono
• Leads solder lugs
• Track material carbon
• Shaft surface knurled
• Mechanical rotation angle 300°
• L shaft length 15mm
• Poles number 1
• Panel cutout diameter 7.2mm
• Max. operating voltage 200V Additional information
• Gross weight: 7.6 g
• Manufacturer part number: R16148-1A-1-B22K

Parametri

22K
0.125W
Vienapgriezienu
Lineāre atkarība
Mono
