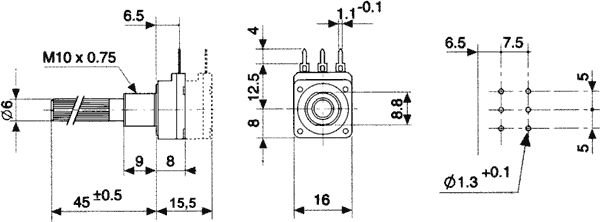

2M5 mono, 16x16x6.5mm, D=6mm, L=40mm, 200mW, potenciometrs ar lineare atkarību
2M5 mono, 16x16x6.5mm, D=6mm, L=40mm, 200mW, potenciometrs ar lineare atkarību
2M5 mono, 16x16x6.5mm, D=6mm, L=40mm, 200mW, potenciometrs ar lineare atkarību 2M5 mono, 16x16x6.5mm, D=6mm, L=40mm, 200mW, potenciometrs ar lineare atkarību

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

2M5 mono, 16x16x6.5mm, D=6mm, L=40mm, 200mW, potenciometrs ar lineare atkarību

Cena: 2.44 €
00027661
6PMI-2M5
0
  • Apraksts

    • Manufacturer PIHER
    • Type of potentiometer shaft
    • Kind of potentiometer single turn
    • Resistance 2.5MΩ
    • Power 200mW
    • Mounting THT
    • Shaft diameter 6mm
    • Characteristics linear
    • Body material plastic
    • Potentiometer features mono
    • Track material carbon
    • Shaft surface knurled
    • Poles number 1
    • Max. operating voltage 250V DC
    • Potentiometer series PC-16

    Parametri

    2M5
    0.2W
    Vienapgriezienu
    Lineāre atkarība
    Mono
