Apraksts

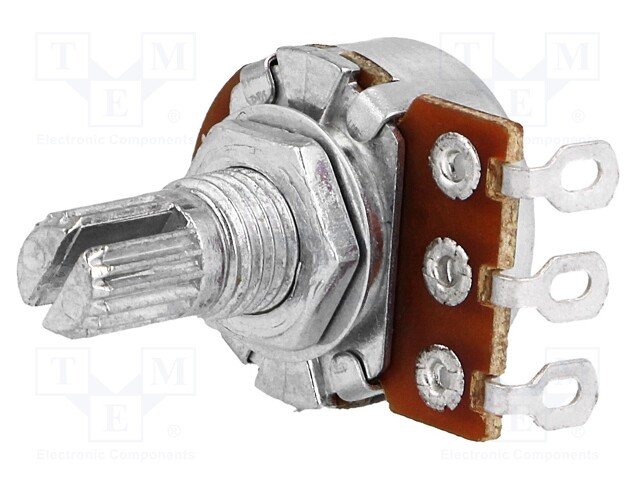

• Manufacturer SR PASSIVES
• Type of potentiometer shaft
• Kind of potentiometer single turn
• Resistance  2.2kΩ
• Power 63mW
• Tolerance ±20%
• Mounting on cable
• Shaft diameter 6mm
• Shaft length 9mm
• Characteristics logarithmic
• Body dimensions Ø17x9.2mm
• Thread length 6mm
• Body material metal
• Potentiometer features mono
• Leads solder lugs
• Track material carbon
• Shaft surface knurled
• Mechanical rotation angle 300°
• L shaft length  15mm
• Poles number 1
• Panel cutout diameter 7.2mm
• Max. operating voltage 150V
• Papildu informācijas
• Masa bruto: 7.8 g
• Oriģināls simbols: R16148-1A-1-A2K2

Parametri

2K2
0.063W
Vienapgriezienu
Logarimiska atkarība
Mono
