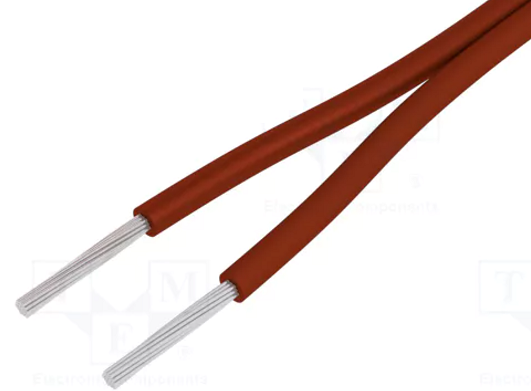

Apraksts

• Manufacturer LAPP
• Type of wire assembly
• Kind of wire ÖLFLEX® HEAT 180 SiZ
• Cable structure 2x0.5mm2
• Kind of core Cu, tinned
• Core structure stranded
• Number of cores 2
• Core section 0.5mm2
• Solid and stranded conductors construction according to AWG
• Wire insulation material silicone
• Insulation colour red
• Operating temperature -50...180°C
• Rated voltage 300V/500V
• Flexibility class 5
• Shield structure unshielded
• CPR standard no classification
• Cable outside dimensions 2.1x4.2mm
• Kind of material flame retardant, halogen free
• Cable application
• air-conditioning technology
• automatics
• heating elements
• industrial applications
• Industrial furnace construction
• saunas and solariums
• Gross weight17.689 g

Parametri

Sarkana krasa
2 x 0.5mm2
