• Manufacturer AXIOMET
• Type of meter digital multimeter
• Measurement transistors gain hFE, AC voltage, DC voltage, capacitance, AC current, DC current, resistance
• Kind of display used LCD 3,5 digit 28mm
• Sampling 3x/s
• DC voltage measuring range 0,1m...200m/2/20/200/1000V
• DC voltage measuring accuracy ±(0,5% + 3 digits)
• AC voltage measuring range 1m...2/20/200/750V
• AC voltage measuring accuracy ±(0,8% + 5 digits)
• Bandwidth for AC voltage measurements 40Hz...200Hz
• DC current measuring range 0,1µ...200µ/20µ/20m/200m/2/20A
• DC current measuring accuracy ±(0,8% + 4 digits)
• AC current measuring range 0,1m...200m/2/20A
• AC current measuring accuracy ±(2% + 5 digits)
• Bandwidth for AC current measurements 40Hz...200Hz
• Resistance measuring range 0,1...200/2k/20k/200k/2M/200MΩ
• Resistance measuring accuracy ±(0,8% + 3 digits)
• Capacitance measuring range 10p...20n/2µ/200µF
• Capacitance measuring accuracy ±(2,5% + 20 digits)
• Diode test 1mA, 3V
• Transistors gain (hFE) test 3V
• Continuity test acoustic signal for R<70Ω
• Overall dimensions (W x D x H) 97 x 35 x 189mm
• Weight with battery 375g

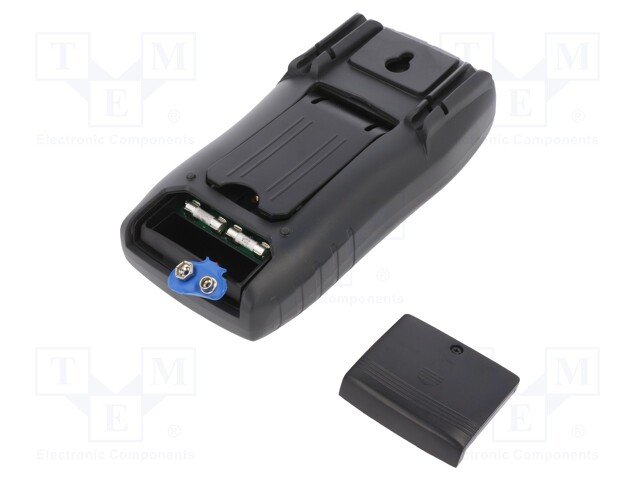

• Power supply 1 battery 9V 6F22, set without battery
• Optional equipment AX-58P soft cover
• Conform to the norm EN61010 600V CAT IV Measuring instrument features:
• automatic power-off
• HOLD function
• impact resistant holster
• manual ranging
• universal
• detects line wire (acoustic and optical indication)
• low battery indicator
• Standard equipment:
• adapter for capacitance and transistors gain (hFE) measurement

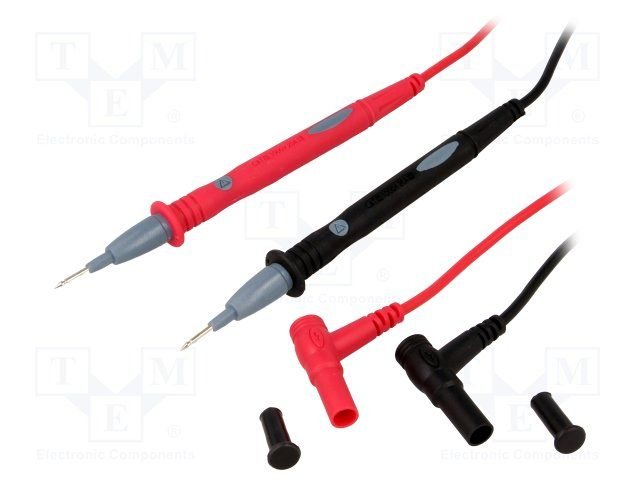

• test leads
