Apraksts

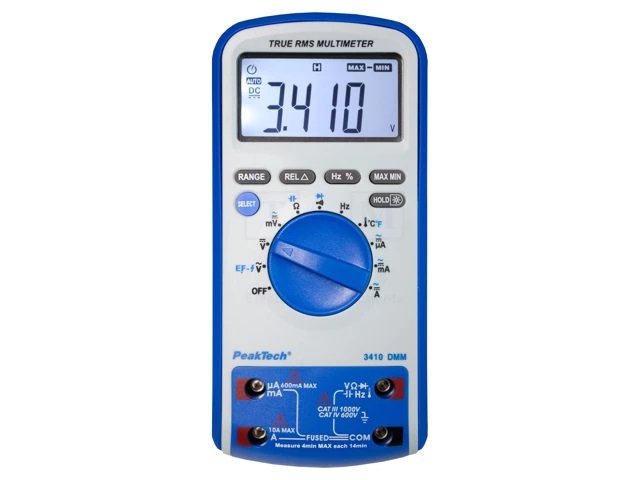

• Manufacturer PEAKTECH
• Type of meter digital multimeter
• Measurement AC current, AC voltage, capacitance, DC current, DC voltage, frequency, resistance, temperature
• Kind of display used LCD 3,83 digit (6000), with a backlit
• DC voltage measuring range 600mV/6V/60V/600V/1kV
• DC voltage measuring accuracy ±(0,5% + 5 digits)
• AC voltage measuring range 600mV/6V/60V/600V/750V
• AC voltage measuring accuracy ±(1% + 5 digits)
• DC current measuring range 600µA/6000µA/60mA/600mA/6A/10A
• AC current measuring range(1) indirect measurement) 600µA/6000µA/60mA/600mA/6A/10A
• DC current measuring accuracy ±(1,5% + 3 digits)
• AC current measuring accuracy ±(1,8% + 5 digits)
• True effective value measurement True RMS
• Resistance measuring range 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
• Resistance measuring accuracy ±(0,5% + 2 digits)
• Capacitance measuring range 60nF/600nF/6µF/60µF/600µF/6000µF/60mF
• Capacitance measuring accuracy ±(5% + 10 digits)
• Frequency measuring range 99.99...99.99kHz
• Frequency measuring accuracy ±(0.05% + 8 digits)
• Temperature measuring range -55...100°C
• Temperature measurement accuracy ±(2% + 3°C)
• Test 1mA @1.5V
• Continuity test <30Ω, acoustic indication
• Weight 500g
• Conform to the norm EN61010 600V CAT IV EN61010 1000V CAT III
• Related items 5790D, 5793D, 5794D, 5795D, 5797D, BKP60, EX871515, EX881602, EX881603, EX881605, PKT-PTA, PKT-PTF-10, PKT-PTF-20, PKT-PTF-25, PKT-PTF-30, PKT-PTF-40, PKT-PTF-50, PKT-PTF-55, PKT-PTF-56, PKT-PTF-60, SE027, SE028, SE029, SE030, SE031, SE059, SE060, SE061, SE062, SE001, SE002, SE003, SE004, SE000, TESTO-06020393, TESTO-06020645, TESTO-06024592, TESTO-06024892, TESTO-06280020, TESTO-06281292, TESTO-06287533, TP200, TP400, TP870, TP873, TP873-5M, TP882, TP-111, TP-112, TP-02, TP-03, TP-04, TP-06, TP-08, TP-09, TPK-59, TPK-62, UTT10K, UTT12
• Dimensions (W x H x D) 90x190x40mm
• Power supply
• battery 6LR61 9V x1
• Standard equipment
• adapters
• case
• K-type thermocouple
• test leads
• user's manual
• Measuring instrument features
• auto and manual ranging
• automatic power-off
• auto navigation
• HOLD function
• low battery indicator
• MIN/MAX/REL function
• overflow indicator
• polarization indicator
• Battery/ rechargeable battery
• battery 6LR61 9V x1
