Apraksts

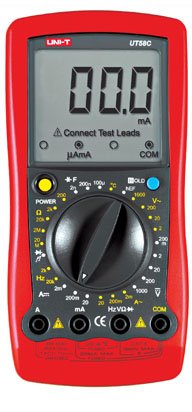

• Manufacturer UNI-T
• Type of meter digital multimeter
• Measurement AC current,  AC voltage,  capacitance,  continuity,  DC current,  DC voltage,  frequency,  resistance,  temperature
• Kind of display used LCD (1999)
• Sampling 2x/s
• DC voltage measuring range 200mV/2V/20V/200V/1kV
• DC voltage measuring accuracy ±(0,5% + 1 digit)
• AC voltage measuring range 2V/20V/200V/1kV
• AC voltage measuring accuracy ±(0,8% + 3 digits)
• DC current measuring range 2mA/200mA/20A
• AC current measuring range  2mA/200mA/20A
• (1) indirect measurement)
• DC current measuring accuracy ±(1,5% + 1 digit)
• AC current measuring accuracy ±(1% + 3 digits)
• Resistance measuring range 200Ω/2kΩ/20kΩ/2MΩ/20MΩ
• Resistance measuring accuracy ±(0,8% + 1 digit)
• Capacitance measuring range 2nF/200nF/100µF
• Capacitance measuring accuracy ±(4% + 3 digits)
• Frequency measuring range 2kHz/20kHz
• Frequency measuring accuracy ±(1,5% + 5 digits)
• Temperature measuring range -40...1000°C
• Temperature measurement resolution 1°C
• Test 1mA @3V
• Continuity test <10Ω,  acoustic indication
• Weight with battery 380g
• Conform to the norm EN61010 600V CAT III,  EN61010 1000V CAT II
• Related items 5790D,  5793D,  5794D,  5795D,  5797D,  BKP60,  EX871515,  EX881602,  EX881603,  EX881605,  PKT-PTA,  PKT-PTF-10,  PKT-PTF-20,  PKT-PTF-25,  PKT-PTF-30,  PKT-PTF-40,  PKT-PTF-50,  PKT-PTF-55,  PKT-PTF-56,  PKT-PTF-60,  SE027,  SE028,  SE029,  SE030,  SE031,  SE059,  SE060,  SE061,  SE062,  SE001,  SE002,  SE003,  SE004,  SE000,  TESTO-06020393,  TESTO-06020645,  TESTO-06024592,  TESTO-06024892,  TESTO-06280020,  TESTO-06281292,  TESTO-06287533,  TP200,  TP400,  TP870,  TP873,  TP873-5M,  TP882,  TP-111,  TP-112,  TP-02,  TP-03,  TP-04,  TP-06,  TP-08,  TP-09,  TPK-59,  TPK-62,  UTT10K,  UTT12
• Dimensions (W x H x D) 88x179x39mm
• Power supply
• battery 6F22 9V x1
• Standard equipment

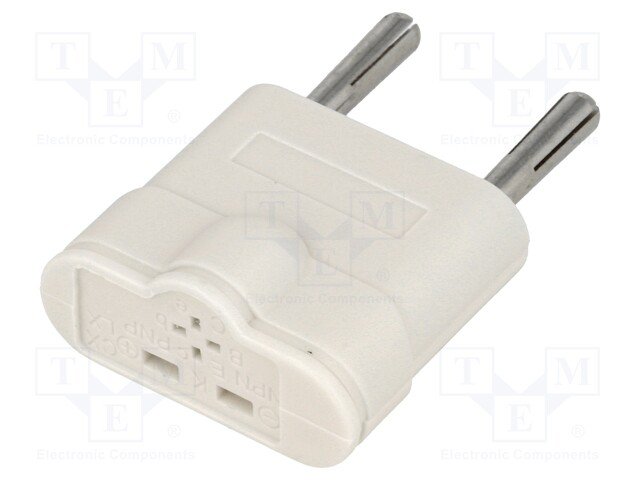

• banana plug - K plug adapter

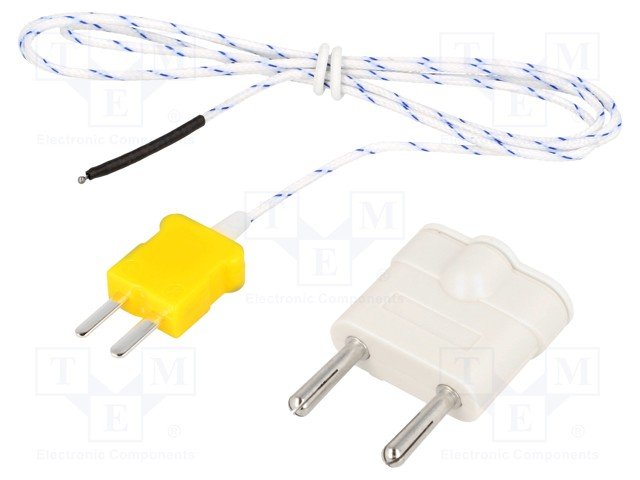

• K-type temperature probe

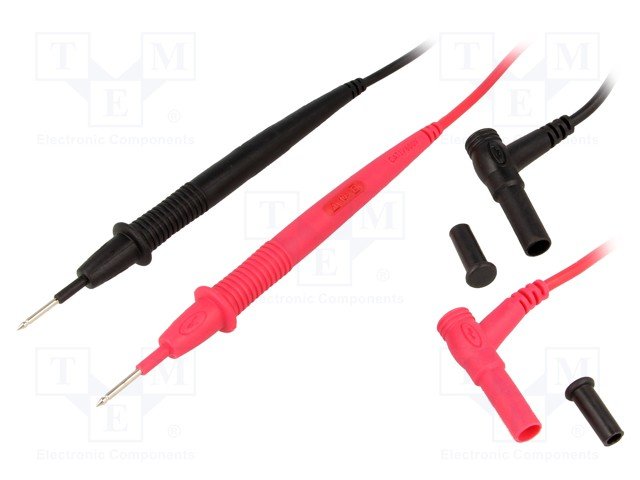

• test leads
• Measuring instrument features
• automatic power-off
• HOLD function
• low battery indicator
• manual ranging
• socket for testing transistors' gain (hFE) parameter
• Battery/ rechargeable battery
• battery 6F22 9V x1
• Additional information
• Gross weight: 573 g
• Guarantee (months): 12
• Manufacturer part number: UT58C
