Apraksts

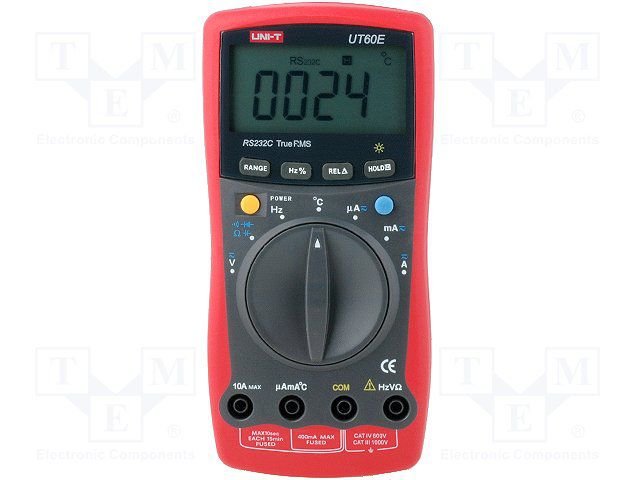

• Manufacturer UNI-T
• Meter type digital multimeter
• Type of display used LCD (3999)
• DC voltage measuring range 0,1m...400m/4/40/400/1000V
• DC voltage measuring accuracy ±(0,8% + 1 digit)
• AC voltage measuring range 1m...4/40/400/750V
• AC voltage measuring accuracy ±(1% + 5 digits)
• Bandwidth for AC voltage measurements 40Hz...400Hz
• DC current measuring range 0,1µ...400µ/4000µ/40m/400m/4/10A
• DC current measuring accuracy ±(1,2% + 3 digits)
• AC current measuring range 0,1µ...400µ/4000µ/40m/400m/4/10A
• AC current measuring accuracy ±(2% + 5 digits)
• Bandwidth for AC current measurements 40Hz...400Hz
• Resistance measuring range 0,1...400/4k/40k/400k/4M/40MΩ
• Resistance measuring accuracy ±(1% + 2 digits)
• Capacitance measuring range 10p...40n/400n/4µ/40µ/100µF
• Capacitance measuring accuracy ±(3% + 5 digits)
• Frequency measuring range 10...10MHz
• Frequency measuring accuracy ±(0,1% + 3 digits)
• Temperature measuring range -40...1000°C
• Temperature measurement accuracy ±(1% + 3 digits)
• Temperature measurement resolution 1°C
• Duty cycle factor 0.1...99.9%
• Continuity test acoustic signal for R<70Ω
• Operating temperature 0...40°C
• Overall dimensions (W x D x H) 85 x 40 x 177mm
• Weight with battery 320g
• Power supply 1 battery 9V 6F22
• Conform to the norm EN61010 1000V CAT III, EN61010 600V CAT IV
• Interface RS232 Measuring instrument features:
• auto and manual ranging
• large, backlit LCD
• HOLD function
• impact resistant holster
• measures frequency, capacitance and temperature
• diode and continuity test
• low battery indicator
• Standard equipment:
• RS232 cable
• test leads
• drop-like K-type temperature probe
• Additional information
• Gross weight: 0.58 kg
