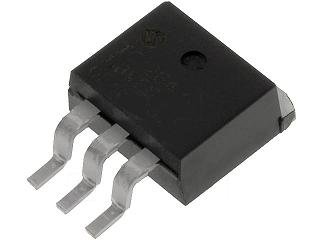

Apraksts

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: SMD/SMT
• Package/Case: TO-263-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 70 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 50 mOhms
• Vgs - Gate-Source Voltage: -
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Qg - Gate Charge: 60 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 83 W
• Channel Mode: Enhancement
• Qualification: AEC-Q101
• Series: VNB20N07
• Packaging: Reel
• Packaging: Cut Tape
• Packaging: MouseReel
• Brand: STMicroelectronics
• Configuration: Single
• Fall Time: 150 ns
• Forward Transconductance - Min: 13 S
• Moisture Sensitive: Yes
• Product Type: MOSFET
• Rise Time: 240 ns

Parametri

70V
20A
83W
0R05
TO-263
