Apraksts

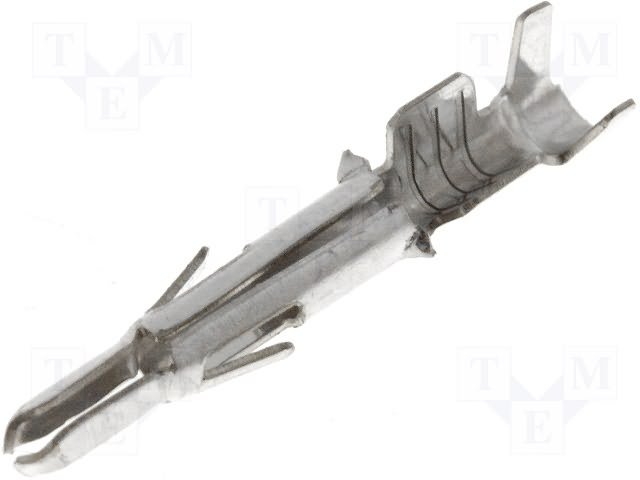

• Terminal for socket NLS 6-15P male
• NLS plugs with female contacts, 6,35 mm pitch, cable mounting.
• Maximal current : 13 A
• Maximal voltage : 600 V
• Test voltage : 1500 VAC
• Maximal contact resistance : 5 mΩ;
• Contact material : brass
• Contact plating : tin
• Cable core diameter : 0,519 -1,31 mm2 (AWG20-16)
• Minimal insulation resistance : 1000 MΩ;
• Temperature range : -25°C to +85°C
• Body material : nylon 6/6
• Flammability class : UL94V-2
• Contact pitch : 6,35 mm
• Colour : white

Parametri

6.35mm
Taisns
Uz vadu
NLS
Kontakts
