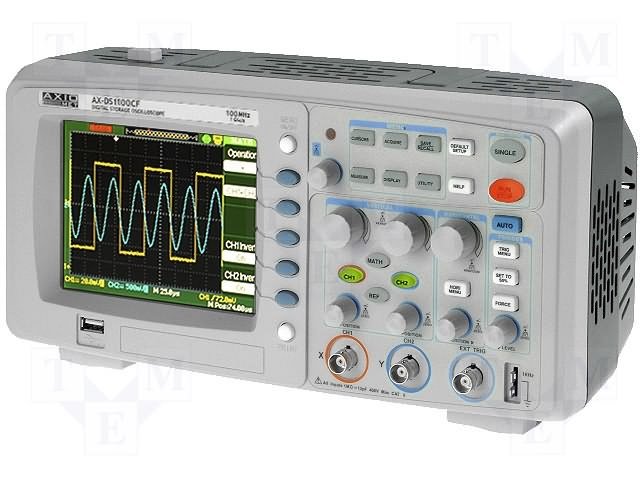

• Specification
• Oscilloscope type digital
• Band Ͱ4;100MHz
• Number of channels 2
• Data gathering data record length: 4096B/CH
• Rise time 3,5ns
• Display LCD 5,7" (320x234)
• Time base 2,5n...50s/div
• Sampling 1Gsps (in real time), 50Gsps (in equivalent time)
• Input impedance 1MΩ;/13pF
• Vertical resolution 8bit
• Input coupling AC, DC, GND
• Trigger modes automatic, normal, single
• Overall dimensions (W x D x H) 305 x 133 x 154mm
• Input sensitivity 2mV/div...10V/div
• Max. input voltage 400V
• Power supply 100...240VAC
• Weight 2.3kg
• Trigger source:
• CH1
• CH2
• external signal
• supply voltage source
• Features:
• automatically measures 32 parameters
• digital filter function
• Holdoff function: 100ns...1,5s
• value averaging function with maximal 256 runs
• RS232 interface
• USB interface
• colour LCD with adjustable contrast
• mathematical functions: addition, subtraction, division, multiplication and FFT
• measurements by means of cursors
• X-Y operation mode
• displays input waveform and FFT on divided screen
• records input waveform
• trigger modes: slope (negative, positive), impulse width, video signal
• integrated FFT with algorithm selection: Hamming, Hanning, Blackman, Rectangular
• memory for 20 settings
• 20 measurement memory
• Trigger coupling:
• AC
• DC
• lowpass
• highpass
• Standard equipment:
• 2 voltage probes with 1:1/10:1 divider
• USB cable
• software
