Apraksts

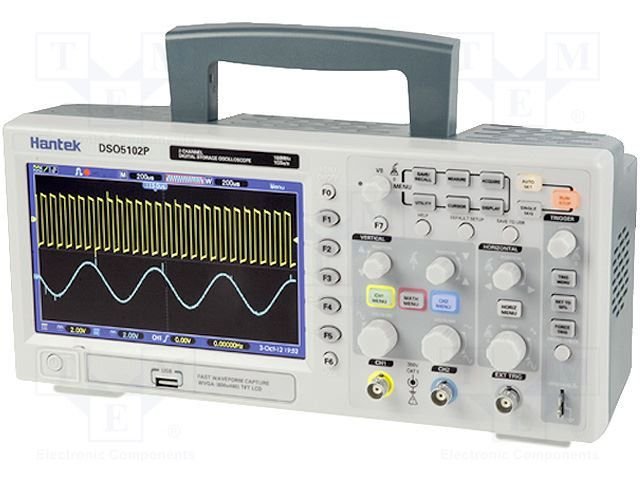

• Manufacturer HANTEK
• Type of oscilloscope digital
• Band ≤100MHz
• Number of channels 2
• Memory record length 40kpts
• Sampling 1Gsps (in real time), 25Gsps (in equivalent time)
• Rise time ≤3,5ns
• Kind of display used color, LCD 7" (800x480)
• Time base 4n...40s/div
• Vertical resolution 8bit
• Weight 2.08kg
• Power supply 100...120V AC, 45...440Hz, 120...240V AC, 45...66Hz
• Overall dimensions (W x D x H) 313x108x142mm
• Interface USB
• Manufacturer series DSO5000P
• Plug variant EU
• Kind of oscilloscope DSO Measuring instrument features:
• 1000 screens memory
• automatic measurement of many parameters
• AUTOSET function for setting display parameters (time base, gain)
• Holdoff function: 100ns...10s
• measurements by means of cursors
• memory for 9settings
• Standard equipment:
• 2 oscilloscope probes
• mains cable
• software
• USB cable
• Kind of output connector:
• USB A socket
• USB B socket
• Additional information
• Gross weight: 3400 g
• Guarantee (months): 12
