Apraksts

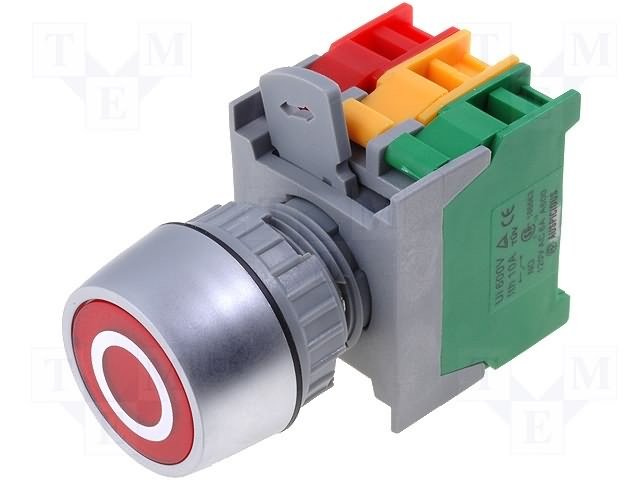

• Specification
• Switch type push-button
• Stable positions number 2-position
• Contacts configuration NC + NO
• AC contacts rating
• (at resistance load) 3 A / 230 VAC
• Switch standard 22mm
• Actuator colour red
• Illumination BA9S, filament lamp
• Sealing IP65
• Button shape flat
• Operating temperature -20...60°C
• Mounting hole diameter Ø;22.5mm
• Number of positions 2
• Button marking O
• Caution! Bulb has to be ordered separately

Parametri

3A/230VAC
NC + NO
2
IP65
2
Paneļu slēdzis
Ar fiksāciju
Sarkans
Ø22mm

Papildu dokumentācija
