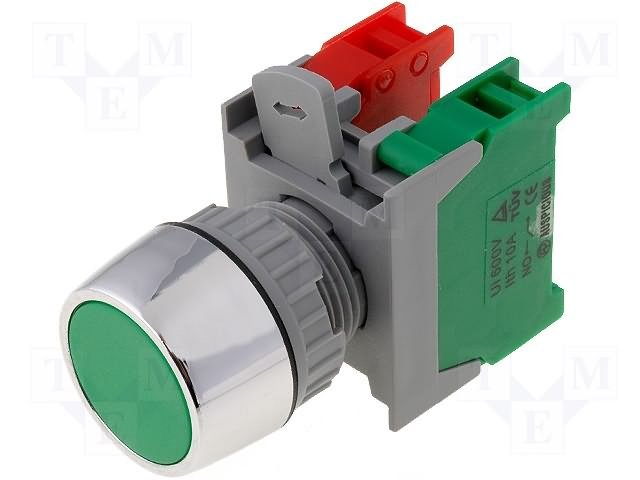

Apraksts

• Specification
• Switch type push-button
• Stable positions number 1-position
• Contacts configuration NC + NO
• AC contacts rating
• (at resistance load) 3 A / 230 VAC
• Switch standard 22mm
• Actuator colour green
• Illumination none
• Sealing IP65
• Button shape flat
• Operating temperature -20...60°C
• Mounting hole diameter Ø;22.5mm
• Number of positions 2

Parametri

3A/230VAC
NC + NO
2
IP65
1
Paneļu slēdzis
Bez fiksācijas
Zaļš
Ø22mm

Papildu dokumentācija
