Apraksts

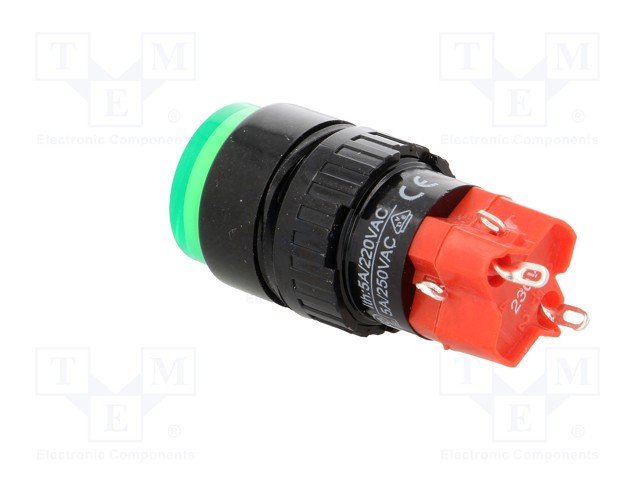

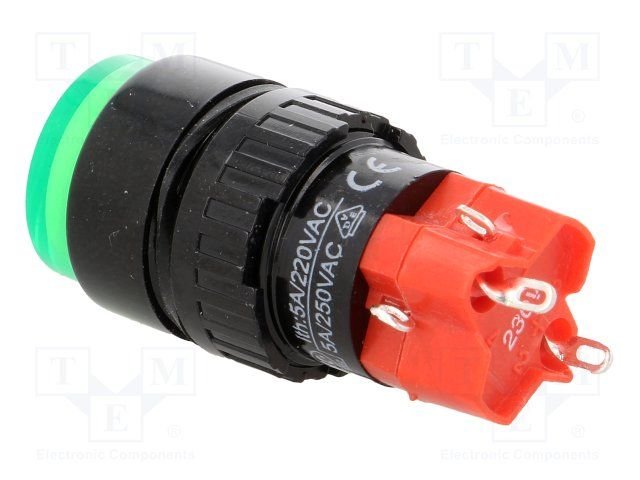

• Manufacturer ONPOW
• Switch type push-button
• Stable positions number 2-position
• Contacts configuration SPDT
• AC contacts rating
• (at resistance load) 3 A / 220 VAC
• DC contacts rating
• (at resistance load) 2 A / 24 VDC
• Actuator colour green
• Backlight colour green
• Illumination LED 230V AC/DC
• Leads for soldering
• Switching method ON-ON
• Operating temperature -25...55°C
• Mounting hole diameter Ø16mm
• Mounting on panel
• Body colour black
• IP rating IP40

Parametri

3A/250VAC
2A/24VDC
ON-ON
2
IP40
2
Paneļu slēdzis
Ar fiksāciju
Zaļš
Ø16mm

Papildu dokumentācija
