Apraksts

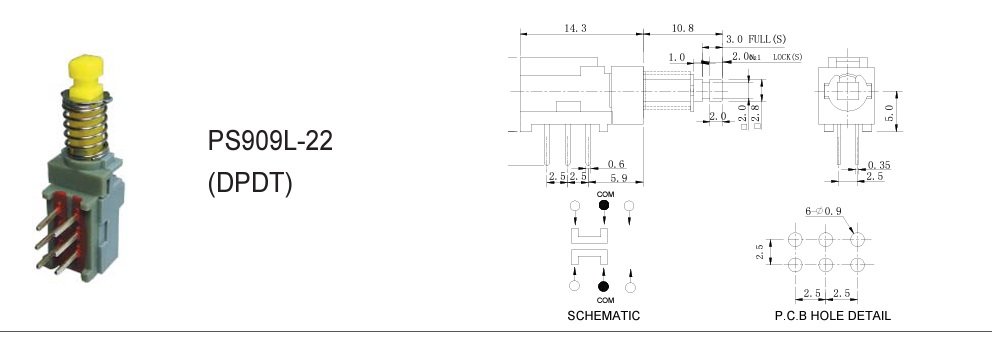

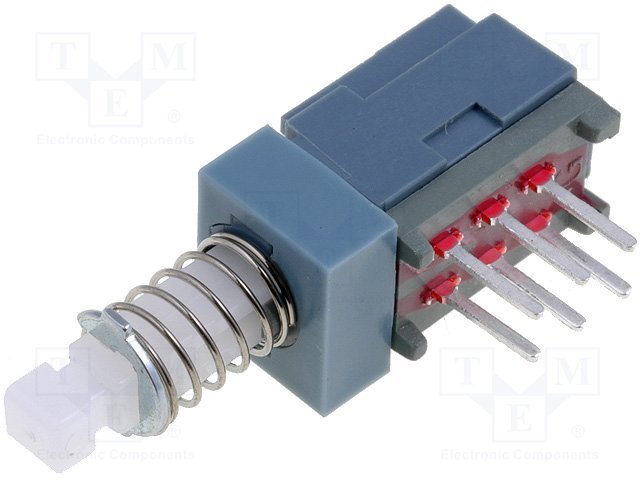

• Miniature bistable switches, two poles, designed for through hole mounting on PCBs.
• Contacts : DPDT 2x(ON-ON)
• Contacts rating : 0,1 A / 30 V DC
• Insulation resistance min. : 100 MΩ;
• Contact resistance max. : 50 mΩ;
• Mechanical life : 30 000 operations
• Electrical life : 10 000 operations
• Soldering temperature : 250°C max 3 sec.
• Terminals pitch : 2,5 x 2,5 mm
• Operating temperature : -10°C to +60°C
• Dim. without terminals (L x W x H) : 25 x 8 x 9 mm

Parametri

DPDT
0.1A/30VDC
ON-ON
Poga
Ar fiksāciju
Bez vītnes
Bez apgaismojuma

Papildu dokumentācija
