Apraksts

• Manufacturer CANAL ELECTRONIC
• Switch type microswitch
• Stable positions number 2-position

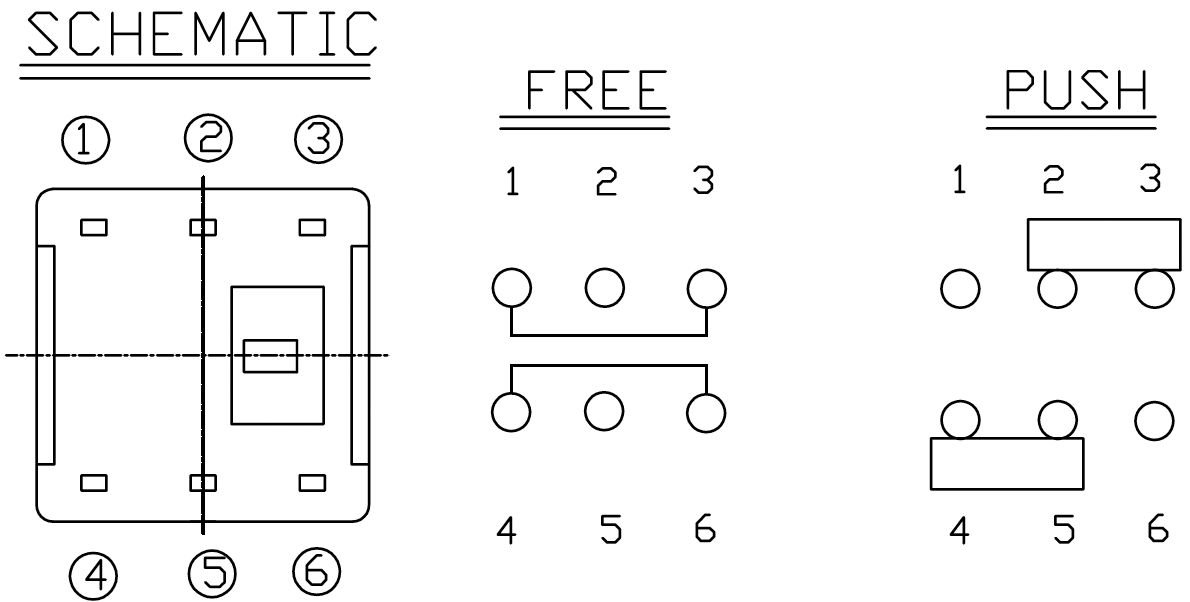

• Contacts configuration DPDT
• DC contacts rating
• (at resistance load) 0.1 A / 30 VDC
• Mounting THT
• Switching torque 1.6N
• Body dimensions 8 x 8mm
• Button height
• (measured from PCB) 13.5mm
• Switching method ON-ON
• Button shape square
• Terminal pitch 2.5x6mm
• Operating temperature -25...65°C
• Leads for PCB, straight
• Max. contact resistance: 50mΩ
• Mechanical durability 100000cycles
• Electrical life 10000cycles
• Soldering temperature 245°C / 3 s

Parametri

DPDT
0.1A/30VDC
ON-ON
Poga
Ar fiksāciju
Bez vītnes
Bez apgaismojuma
