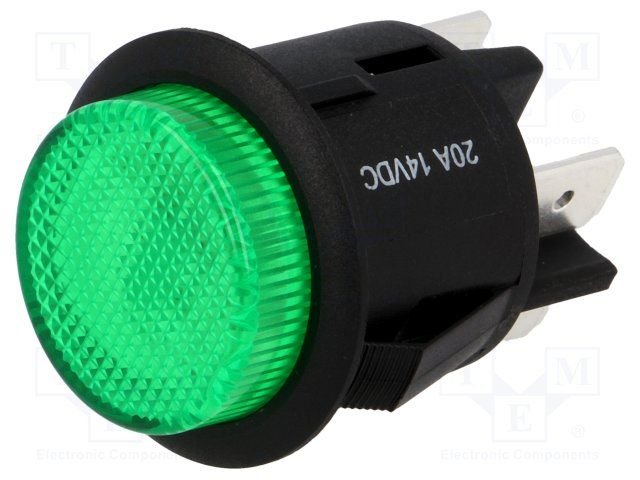

Apraksts

• Manufacturer SCI
• Type of switch push-button
• Number of positions 2
• Stable positions number 2-position
• Contacts configuration DPST-NO
• DC contacts rating @R
• (at resistance load) 20A / 12VDC
• Actuator colour green
• Illumination LED 12V DC
• Backlight colour green
• Leads 4,8x0,8mm connectors
• Switching method
• (item in brackets is instantaneous) OFF-ON
• Operating temperature -25...70°C
• Mounting on panel
• Button shape round, prominent
• Mounting hole diameter Ø25mm
• Max. contact resistance: 50mΩ
• Manufacturer series R13-541
• Panel thickness max 3mm
• Body material polyamide

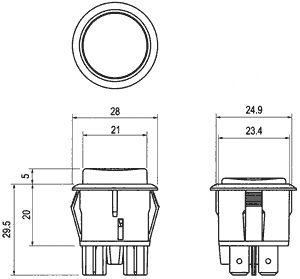

• Body dimensions Ø26x27mm
• AC test voltage 1.5kV
• Flammability rating UL94V-2
• Terminals plating silver plated

Parametri

DPST-NO
20A/12VDC
OFF-ON
Poga
Ar fiksāciju
Bez vītnes
LED12VDC
