Apraksts

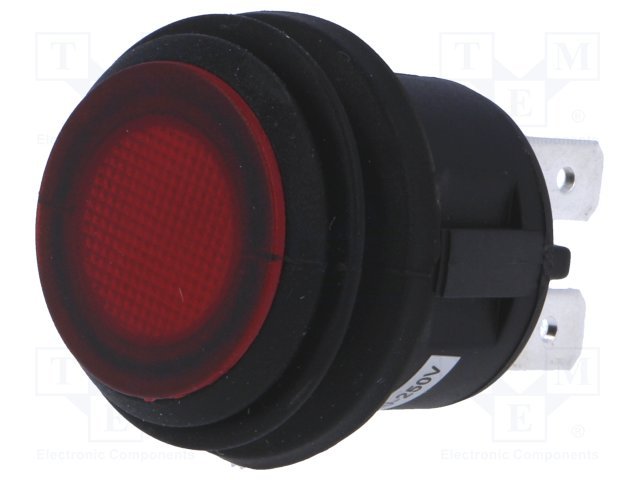

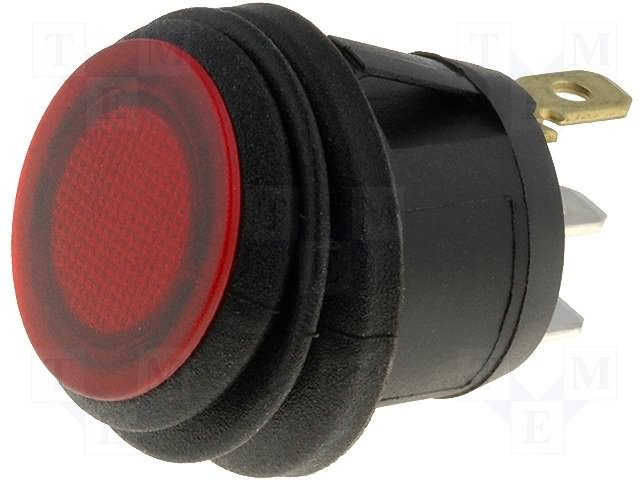

• Manufacturer SCI
• Switch type push-button
• Flammability rating UL94V-2
• Leads 4.8 x 0.8 mm blades
• Contacts configuration DPST
• AC contacts rating* 6 A / 250 V
• Max contact resistance: 50 mΩ;
• AC test voltage 1.5 kV
• Illumination neon lamp 230V
• Illumination voltage 230 V
• Terminals plating silver
• Body material polyamide
• Body dimensions Ø;17.5 x 18 mm
• Panel thickness max 3 mm

Parametri

DPST-NO
6A/250VAC
OFF-ON
Poga
Ar fiksāciju
Bez vītnes
230VAC
