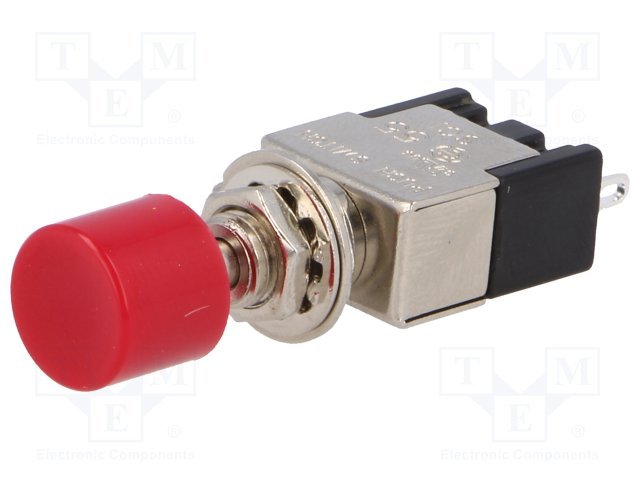

Apraksts

• Manufacturer SCI
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPDT
• AC contacts rating @R  3A / 250V AC
• (at resistive load)
• Switching method  ON-ON
• (the position in bracket indicates momentary position.)
• Illumination none
• Leads for soldering
• Operating temperature -25...70°C
• Electrical life 6000 cycles
• Max. contact resistance: 50mΩ
• Button shape prominent,  round
• Mounting hole diameter Ø6.2mm
• Actuator colour red
• Panel thickness max. 4mm
• Mounting on panel
• Manufacturer series PA1
• Stable positions number 2

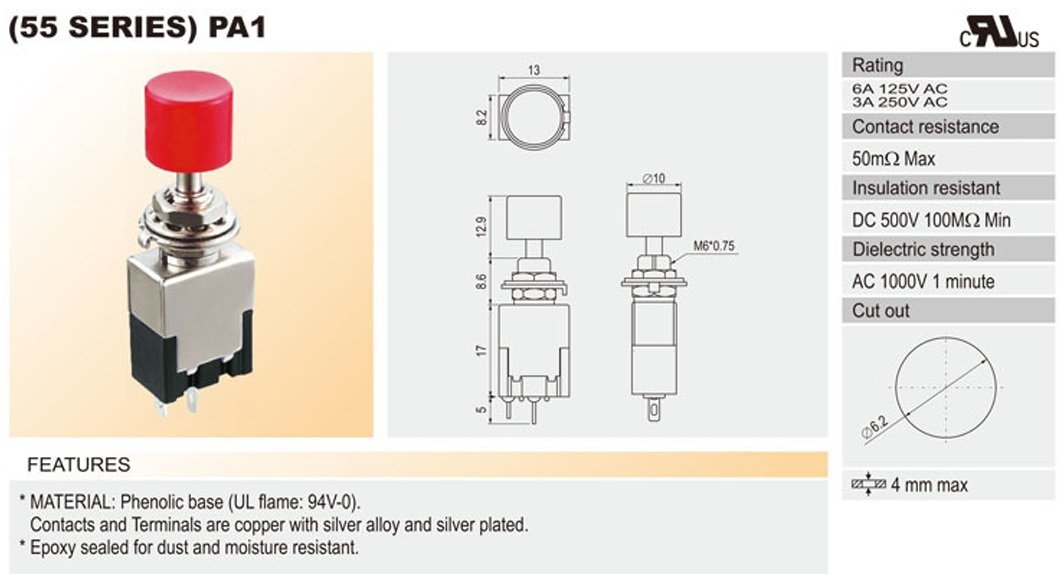

• Dimensions see
• Additional information
• Gross weight: 7.58 g
• Manufacturer part number: PA102A1

Parametri

SPDT
3A/250VAC
ON-ON
Poga
Ar fiksāciju
M6
Bez apgaismojuma
