Apraksts

• Manufacturer SCI
• Type of switch push-button
• Number of positions 2
• Contacts configuration  SPST-NO
• AC contacts rating @R  1.5A / 250V AC
• Switching method  OFF-ON
• Backlight colour red
• Illumination LED 12V DC
• Leads for soldering
• Operating temperature -25...70°C
• Max. contact resistance: 50mΩ
• Button shape prominent,  round
• Mounting hole diameter Ø16mm
• Body material polyamide
• AC test voltage 1.5kV
• Manufacturer series R13-508
• Actuator colour red
• Panel thickness max. 7mm
• Mounting on panel
• Body dimensions Ø17.5x18mm
• Flammability rating UL94HB
• Terminals plating silver plated
• Stable positions number 2
• Panel cutout see

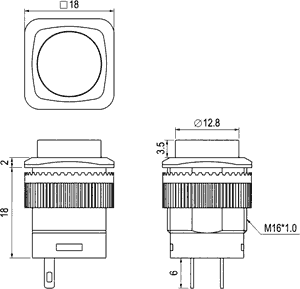

• Dimensions see
• Additional information
• Gross weight: 4.66 g
• Manufacturer part number: R13-508BL-05-BR-L-1

Parametri

SPST-NO
1.5A/250VAC
OFF-ON
Poga
Ar fiksāciju
M16
LED12VDC
