Apraksts

• Manufacturer HIGHLY
• Type of switch keypad
• Number of positions 2
• Contacts configuration  SPST-NO
• DC contacts rating @R  0.01A / 35V DC
• Actuator colour colourless
• Illumination LED
• Backlight colour green
• Mounting THT
• Leads for PCB,  straight
• Switching method  OFF-(ON)
• Operating temperature -20...60°C
• Manufacturer series KS01

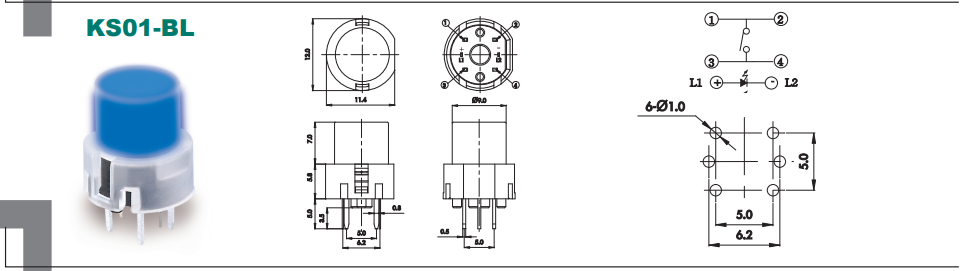

• Body dimensions Ø12mm
• Stable positions number 1
• Operating Force 1.3N
• Max. contact resistance: 30mΩ
• Min. insulation resistance 100MΩ
• Electrical life 100000 cycles
• Button shape round
• Terminal pitch 5x5mm
• Additional information
• Gross weight: 1.042 g
• Manufacturer part number: KS01-BLV-3

Parametri

SPST-NO
0.01A/35VDC
OFF-(ON)
Poga
Bez fiksācijas
Bez vītnes
LED2.2VDC

Papildu dokumentācija
