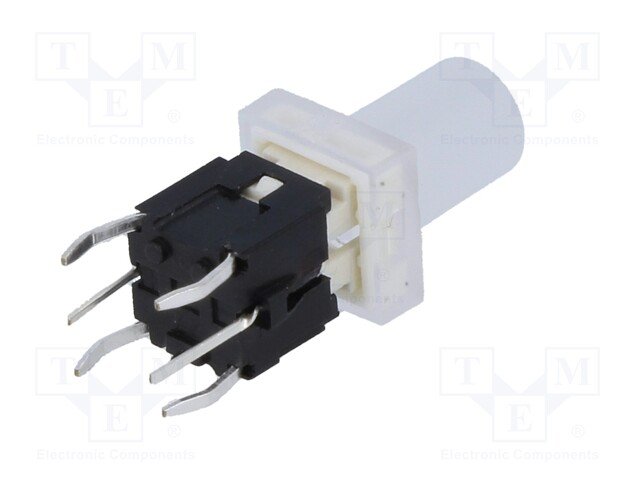

Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas
Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas
Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas
Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Poga SPST-NO, OFF-(ON), 0.05A/12VDC, PCB, LED3.3VDC, balta, 7.5x7.5mm, bez fiksacijas

Cena: 1.93 €
00016372

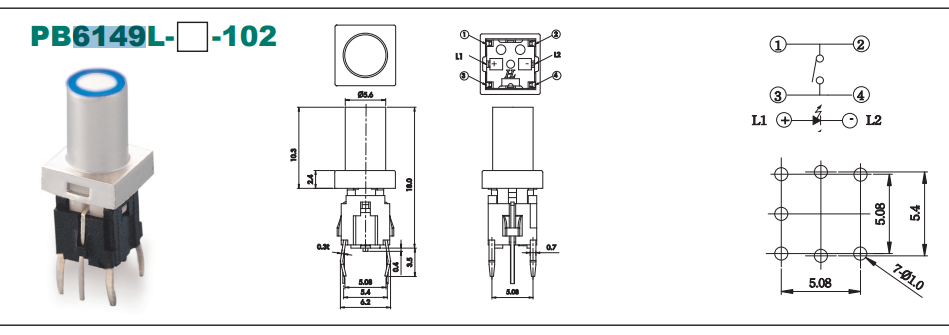

PB6149L-5
16

  • Apraksts

    • Manufacturer HIGHLY
    • Type of switch keypad
    • Number of positions 2
    • Contacts configuration  DPST-NO
    • DC contacts rating @R  0.05A / 12V DC
    • Actuator colour colourless
    • Illumination LED
    • Backlight colour white
    • Mounting THT
    • Leads for PCB,  straight
    • Switching method  OFF-(ON)
    • Operating temperature -20...70°C
    • Manufacturer series PB614
    • Body dimensions 7.5x7.5mm
    • Stable positions number 1
    • Operating Force 1.6N
    • Max. contact resistance: 100mΩ
    • Min. insulation resistance 100MΩ
    • Electrical life 300000 cycles
    • Button shape round
    • Terminal pitch 5.08x5.08mm
    • Button height  18mm

    Parametri

    SPST-NO
    0.05A/12VDC
    OFF-(ON)
    Poga
    Bez fiksācijas
    Bez vītnes
    LED3.3VDC

    Papildu dokumentācija
