Apraksts

• Manufacturer SCI
• Switch type push-button
• Flammability rating UL94V-HB
• Leads solder lugs
• Contacts configuration SPST
• Stable positions monostable
• Switching method OFF-(ON)
• AC contacts rating* 1.5 A / 250 V
• Max contact resistance: 50 mΩ;
• AC test voltage 1.5 kV
• Illumination LED
• Illumination voltage 12 V
• Terminals plating silver
• Body material fiber glass reinforced polyamide

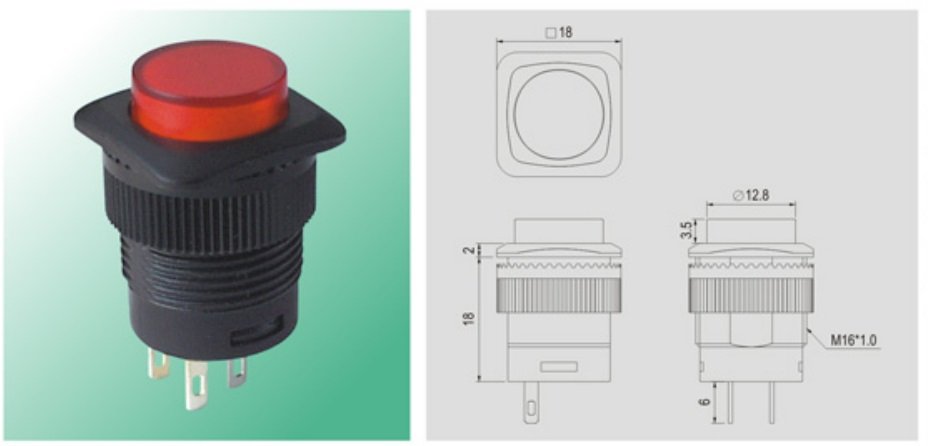

• Body dimensions Ø;17.5 x 18 mm
• Panel thickness max 7 mm
• Actuator colour red

Parametri

SPST-NO
1.5A/250VAC
OFF-(ON)
Poga
Bez fiksācijas
M16
Bez apgaismojuma

Papildu dokumentācija
