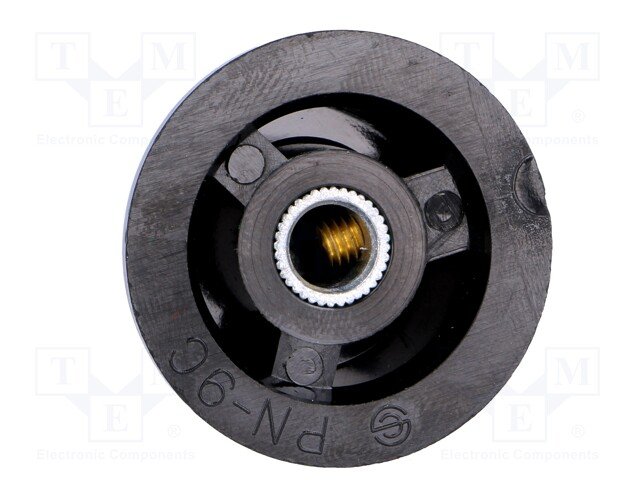

Apraksts

• Manufacturer SCI
• Type of accessories for potentiometer knob
• Kind of knob with pointer
• Material bakelite
• Shaft diameter 6mm
• Knob dimensions Ø27.2x17.5mm
• Colour black
• Mounting screw fastening
• Shaft surface smooth
• Inside hole diameter 6.4mm
• Flange diameter 33.5mm
• Resistance to enhanced temperature
• Knobs features
• brass fixation bushing inside
• deeply profiled surface
• Additional information
• Gross weight: 10.95 g
• Manufacturer part number: PN-9C-6.4

Parametri

Ø27.2x17.5mm
Plastmasa
Vienapgriezienu
Ø6.4mm
ar skrūvi
Bez svārkas
O-profils
