Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 110V AC
• AC contacts rating @R
• (at resistance load) 8 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 8 A / 24 VDC
• Contact current max. 8A
• Switched voltage max 250V DC, max 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 8.9kΩ
• Coil voltage min. 88V AC
• Coil voltage max. 132V AC
• Operate time 7ms

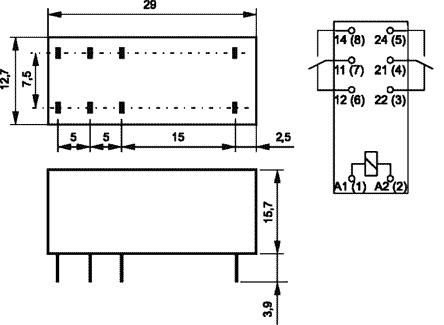

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 750mVA
• IP rating IP67
• Mechanical durability 30000000cycles
• Operating temperature -40...85°C
• Weight 14g
• Relay series RM84
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Height 15.7mm
• Number of pins 8

Parametri

RELPOL
110VAC
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
monostabilais
2
