Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 110V DC
• AC contacts rating @R
• (at resistance load) 16 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 16 A / 24 VDC
• Contact current max. 16A
• Switched voltage max 440V AC, max 250V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 25200Ω
• Coil voltage min. 77V DC
• Coil voltage max. 280V DC
• Operate time 7ms

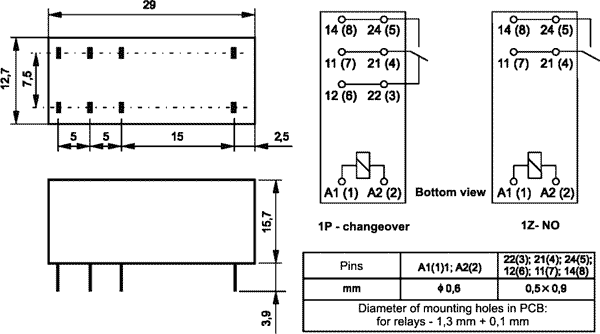

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• IP rating IP67
• Operating temperature -40...85°C
• Relay series RM85
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm
• Current rating 16A

Parametri

RELPOL
110VDC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
