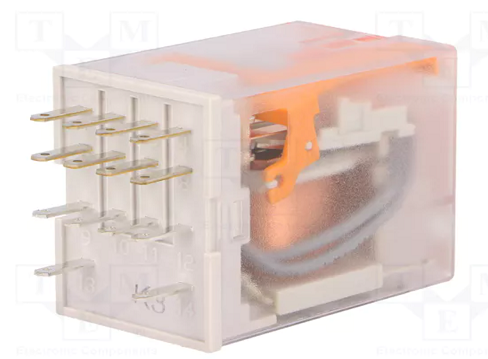

Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic

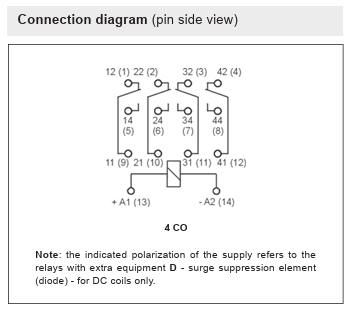

• Contacts configuration 4PDT
• Rated coil voltage 115V AC
• Contact current max. 6A
• AC contacts rating @R(at resistive load) 6A / 250V AC
• DC contacts rating @R(at resistive load) 6A / 24V DC
• Switched voltage max. 250V AC, max. 250V DC
• Relay variant industrial
• Mounting socket
• Manufacturer series R4N
• Body dimensions 27,5x21,2x35,6mm
• Coil resistance 3,61kΩ
• Contact resistance 100mΩ
• Contact material AgNi
• Leads connectors
• Leads dimensions 2,2x0,5mm
• IP rating IP40
• Coil power consumption 1,6VA
• Number of pins 14
• OEM number 860874
• Max surge current 12A
• Operating temperature -40...55°C
• Related items G4, GZ4, GZM4, GZT4
• Optional equipment
• mechanical indicator
• test button with blocking function
• Masa bruto31.6 g

Parametri

4PDT
uz pārslēgšanu
monostabilais
4
110VAC
RELPOL
4x6A/250VAC
4x6A/24VDC
