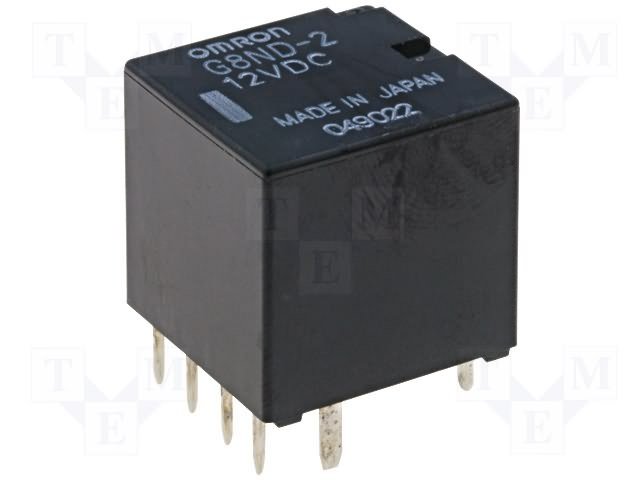

Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT x2
• Rated coil voltage 12V DC
• Contact current max. 30A
• Relay variant automotive
• Coil voltage min. 7.2V DC
• Coil resistance 225Ω;
• Switched voltage max 16V DC
• Relay series G8ND-2
• Operating temperature -40...85°C

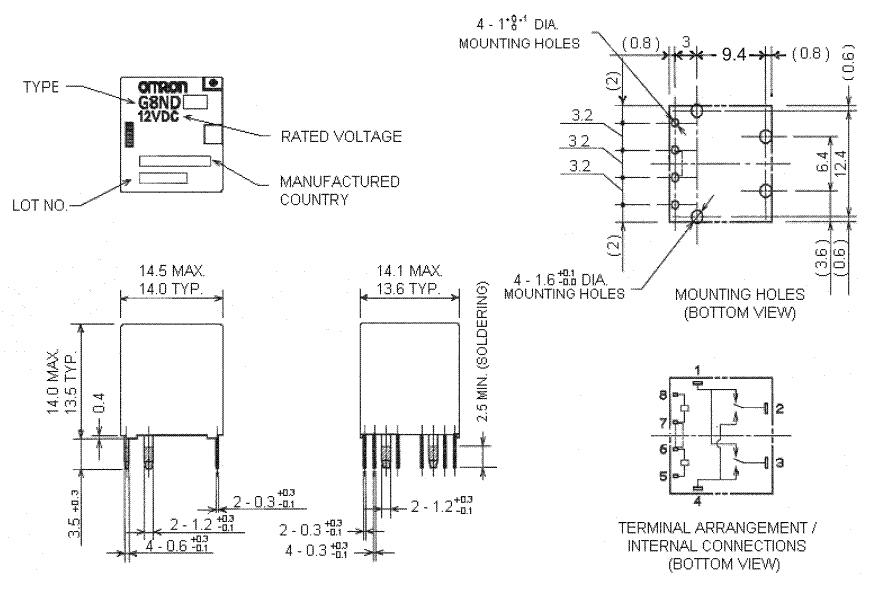

• Body dimensions 14.1 x 14 x 14mm
• Mechanical durability 1000000cycles
• Coil power consumption 640mW
• Coil current 53.3A

Parametri

OMRON
12VDC
SPDTx2
30A/14VDC
uz pārslēgšanu
monostabilais
2
2

Papildu dokumentācija
