Apraksts

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration 3PDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 20A
• AC contacts rating @R(at resistive load) 10A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 10A / 24V DC
• at resistive load
• Switched voltage max. 250V DC, max. 440V AC
• Relay variant industrial
• Mounting socket
• Manufacturer series R3N
• Operating temperature -40...70°C

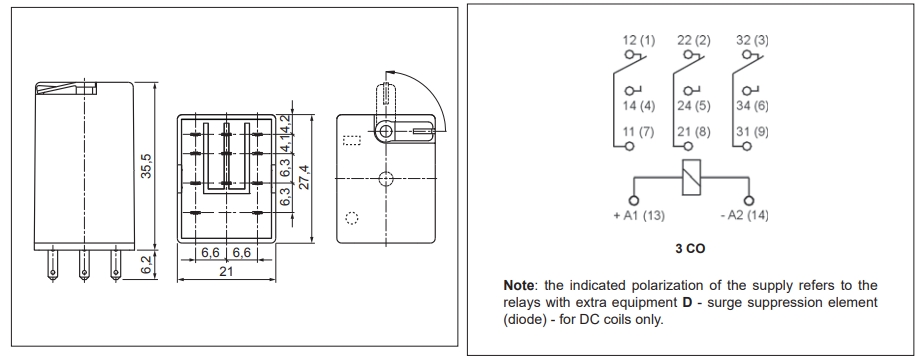

• Body dimensions 27,5x21,2x35,6mm
• Coil resistance 160Ω
• Contact resistance 100mΩ
• Coil power consumption 0,9W
• Leads connectors 2,2x0,5mm
• IP rating IP40
• Number of pins 11
• OEM number 861111
• Optional equipment
• mechanical indicator
• test button with blocking function
• Masa bruto33.72 g

Parametri

RELPOL
12VDC
3PDT
3x10A/250VAC
3A/24VDC
uz pārslēgšanu
monostabilais
3
1
