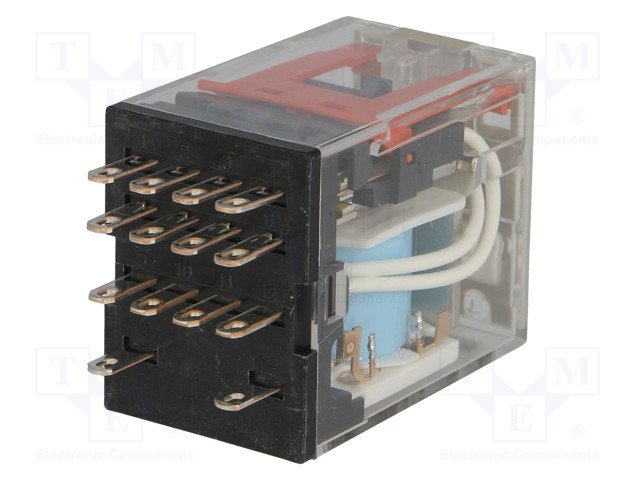

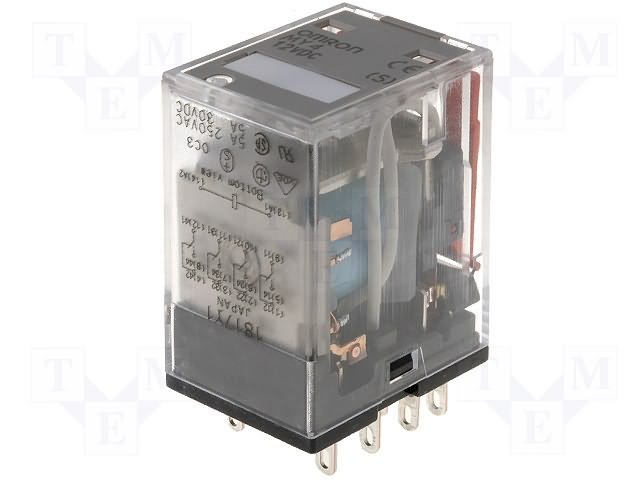

Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON
Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON
Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON
Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC12V, 4PDT, 4x5A/250VAC, 4x5A/24VDC, 160R(75mA), četras grupas pārslēgšanu, 28x21.5x36mm, OMRON

Cena: 13.71 €
00019296
MY4-12DC
6
  • Apraksts

    • Specification
    • Relay type electromagnetic
    • Contacts configuration 4PDT
    • Rated coil voltage 12V DC
    • AC contacts rating
    • (at resistance load) 5 A / 220 VAC
    • DC contacts rating
    • (at resistance load) 5 A / 24 VDC
    • Contact current max. 5A
    • Switched voltage max 250V AC, max 125V DC
    • Relay variant industrial
    • Mounting socket
    • Coil voltage min. 9.6V DC
    • Relay series MY4
    • Operating temperature -55...70°C
    • Body dimensions 28 x 21.5 x 36mm
    • Coil resistance 160Ω;
    • Mechanical durability 100000000cycles
    • Operate time 20ms
    • Release time 20ms
    • Coil current 75mA
    • Contact resistance 100mΩ;
    • Coil power consumption 0.9W
    • Leads 2.5x0.5mm connectors

    Parametri

    OMRON
    12VDC
    4PDT
    4x5A/250VAC
    4x5A/24VDC
    uz pārslēgšanu
    4
    monostabilais
    1
