Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 0.5 A / 125 VAC
• DC contacts rating
• (at resistance load) 2 A / 30 VDC
• Contact current max. 2A
• Switched voltage max 250V AC, max 220V DC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 1028Ω
• Operate time 4ms

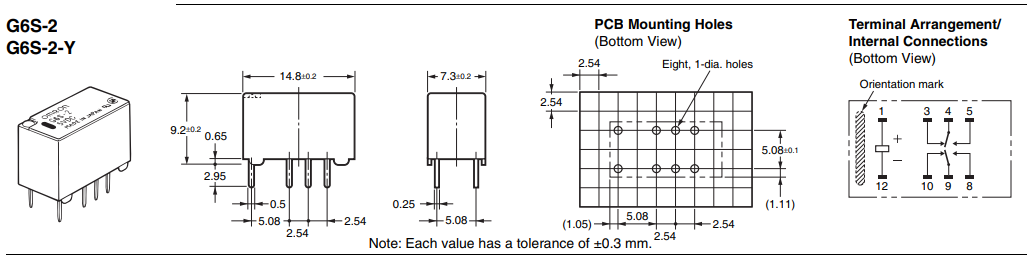

• Body dimensions 14.8 x 7.3 x 9.2mm
• Release time 4ms
• Coil power consumption 140mW
• Operating temperature -40...85°C
• Relay series G6S
• Contact resistance 75mΩ
• Terminal pitch 2.54mm
• Coil current 11.7mA

Parametri

OMRON
12VDC
DPDT
0.5A/125VAC
2A/30VDC
uz pārslēgšanu
2
monostabilais
1

Papildu dokumentācija
