Apraksts

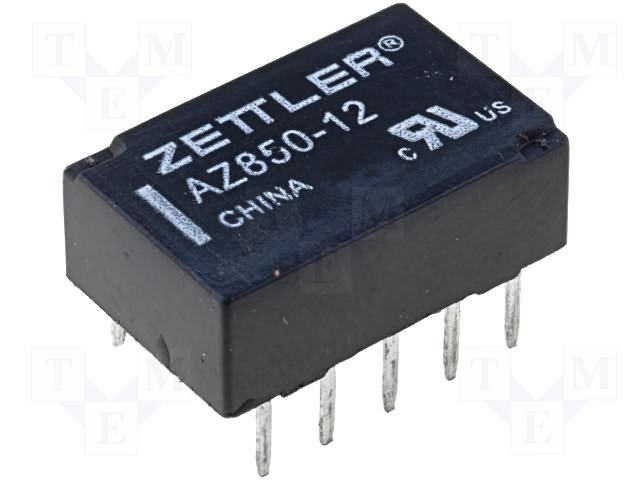

• Manufacturer ZETTLER
• Relay type electromagnetic

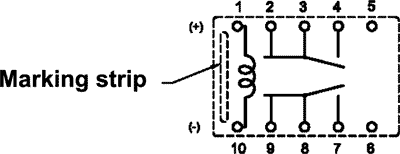

• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 0.5 A / 125 VAC
• DC contacts rating
• (at resistance load) 1 A / 30 VDC
• Contact current max. 1A
• Switched voltage max 220V DC, max 250V AC
• Relay variant subminiature
• Mounting PCB
• Coil resistance 1028Ω
• Coil voltage min. 8.4V DC
• Coil voltage max. 30V DC
• Operate time 2ms

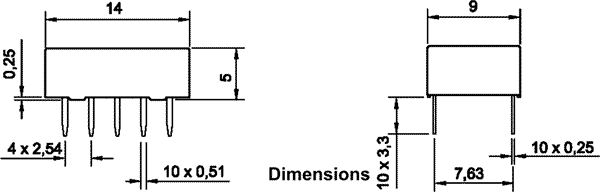

• Body dimensions 14 x 9 x 5mm
• Release time 1ms
• Coil power consumption 142mW
• Mechanical durability 100000000cycles
• Operating temperature -55...90°C
• Relay series AZ850
• Contact resistance 70mΩ
• Case DIP10
• Switching capacity 30W, 50VA
• Soldering temperature 250°C

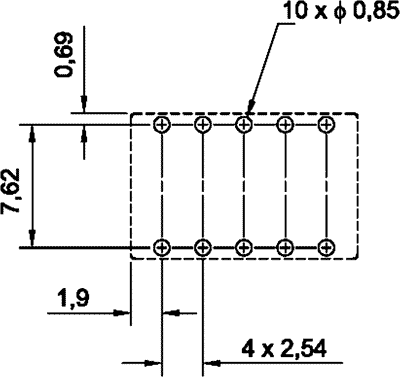

• Terminal pitch 2.54mm
• Relay features single coil
• Test voltage 1.5kV

Parametri

ZETTLER
12VDC
DPDT
2x0.5A/120VAC
2x1A/30VDC
uz pārslēgšanu
2
bistabilas/polarizetais
1

Papildu dokumentācija
