Apraksts

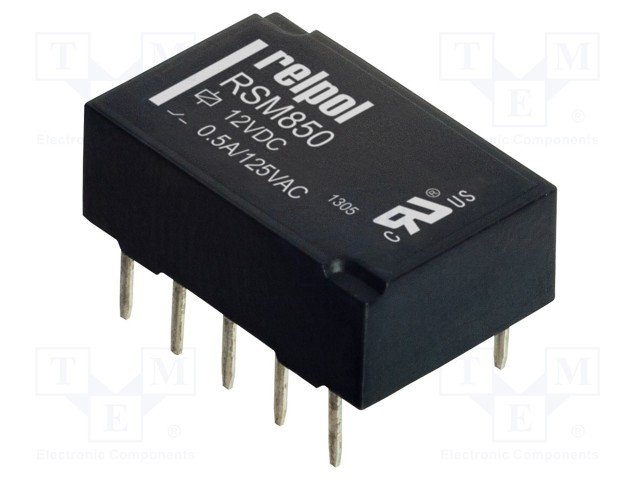

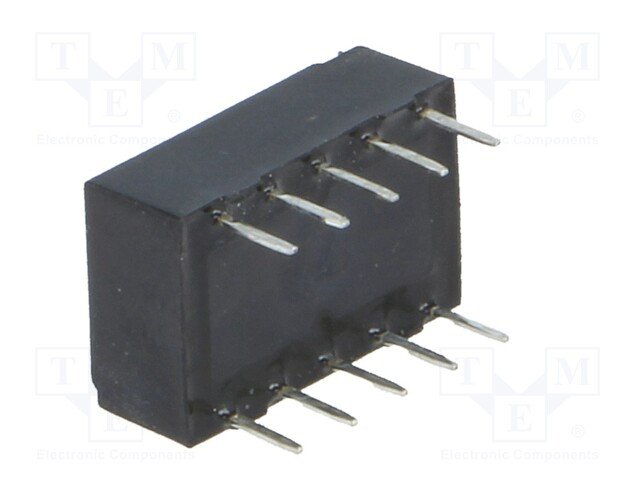

• Manufacturer RELPOL
• Type of relay electromagnetic
• Contacts configuration  DPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  0.5A / 125V AC
• DC contacts rating @R  2A / 30V DC
• Contact current max. 2A
• Switched voltage max. 30V DC,  max. 250V AC
• Relay variant monostable,  subminiature
• Mounting THT
• Coil resistance 1028Ω
• Coil voltage min. 9V DC
• Coil voltage max. 30V DC
• Operate time 3ms

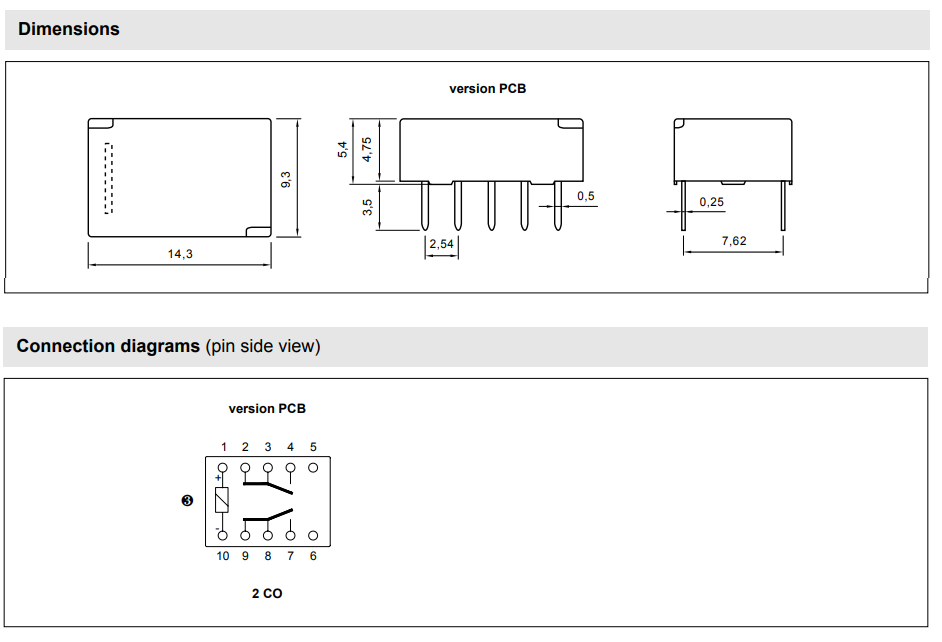

• Body dimensions 14.3x9.3x5.4mm
• Release time 3ms
• Coil power consumption 140mW
• IP rating IP64
• Mechanical durability 1000000000 cycles
• Operating temperature -40...85°C
• Weight 1.5g
• Relay series RSM850
• Contact resistance 50mΩ
• Electrical life 100000 cycles
• Contact material AgPd/Au 0,2μm
• Terminal pitch 2.54mm
• OEM number 2611708
• Additional information
• Gross weight: 1.33 g
• Manufacturer part number: RSM850-6112-85-1012

Parametri

12VDC
DPDT
2x0.5A/125VAC
2x1A/30VDC
uz pārslēgšanu
2
monostabilais
1
RELPOL
