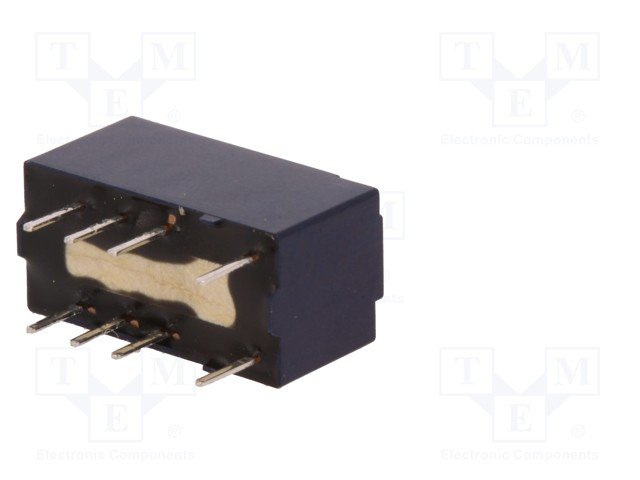

Apraksts

• Manufacturer PANASONIC
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• DC contacts rating @R
• (at resistance load) 2A / 30V DC
• Contact current max. 2A
• Switched voltage max. 220V DC
• Relay variant signal, subminiature
• Mounting PCB
• Coil resistance 1028Ω
• Coil voltage min. 9V DC

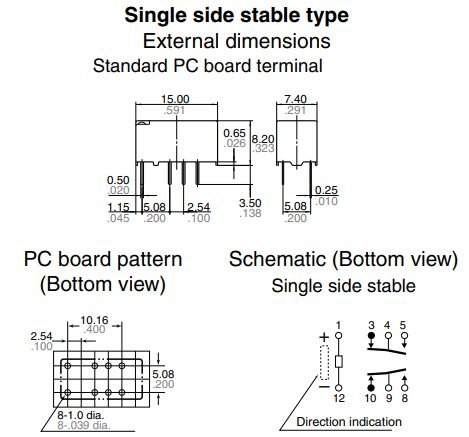

• Body dimensions 15x7.4x8.2mm
• Coil power consumption 140mW
• Mechanical durability 100000000cycles
• Operating temperature -40...85°C
• Relay series TX
• Contact material silver alloy
• Coil current 11.7mA
• Contact plating gold-plated

Parametri

PANASONIC
12VDC
DPDT
2x2A/30VDC
uz pārslēgšanu
2
monostabilais
1

Papildu dokumentācija
