Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 8 A / 250 VAC
• DC contacts rating
• (at resistance load) 8 A / 24 VDC
• Contact current max. 8A
• Switched voltage max 440V AC, max 250V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω;
• Coil voltage min. 8.4V DC
• Coil voltage max. 30.6V DC
• Operate time 7ms

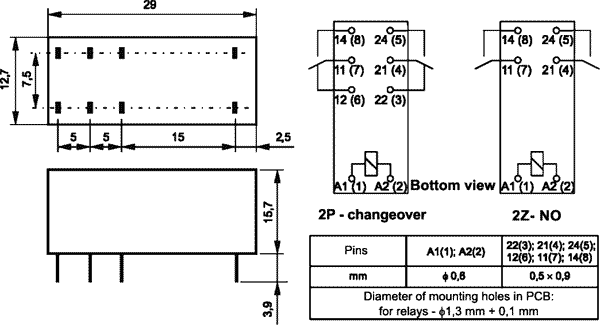

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• Sealing IP67
• Operating temperature -40...85°C
• Relay series RM84
• Contact resistance 100mΩ;
• Contacts pitch 5mm

Parametri

RELPOL
12VDC
DPDT
2x8A/250VAC
2x8A/24VDC
uz pārslēgšanu
2
monostabilais
1
