Apraksts

• Manufacturer TE Connectivity
• Type of relay electromagnetic
• Contacts configuration DPDT
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 8 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 8 A / 30 VDC
• Contact current max. 8A
• Switched voltage max 400V AC, max 300V DC
• Relay variant miniature, monostable
• Mounting PCB
• Coil resistance 360Ω
• Coil voltage min. 8.4V DC
• Operate time 7ms

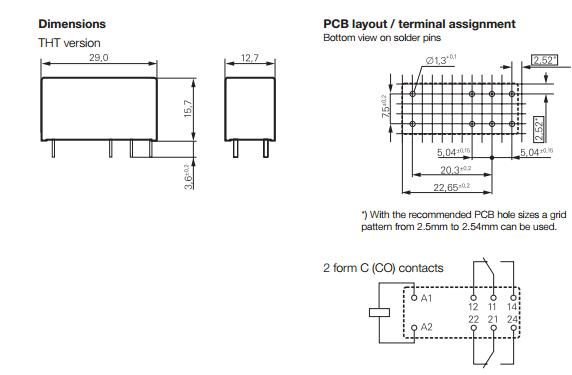

• Body dimensions 29 x 12.7 x 15.7mm
• Release time 2ms
• Coil power consumption 400mW
• IP rating IP40
• Mechanical durability 300000000cycles
• Operating temperature -40...70°C
• Weight 14g
• Relay series RT2
• Contact material AgNi 90/10
• Terminal pitch 5mm
• Height 15.7mm
• Number of pins 8

Parametri

TE Connectivity
12VDC
DPDT
2x8A/250VAC
2x8A/30VDC
uz pārslēgšanu
2
monostabilais
1
