Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 10 A / 250 VAC
• DC contacts rating
• (at resistance load) 5 A / 30 VDC
• Contact current max. 10A
• Switched voltage max 277V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω;
• Operate time 10ms

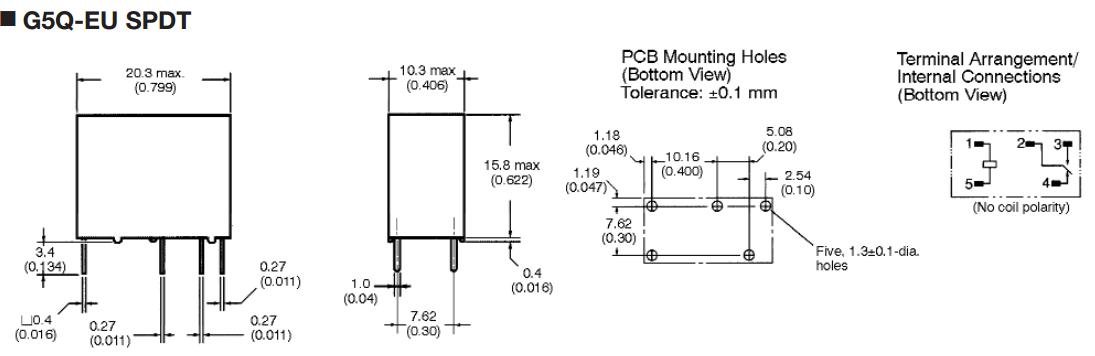

• Body dimensions 20.3 x 10.3 x 15.8mm
• Release time 5ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series G5Q-EU
• Contact resistance 100mΩ;
• Contacts pitch 2.54mm
• Coil current 33.3mA
• Enclosure description Hermetic seal

Parametri

OMRON
12VDC
SPDT
10A/250VAC
5A/30VDC
uz pārslēgšanu
1
monostabilais
1

Papildu dokumentācija
