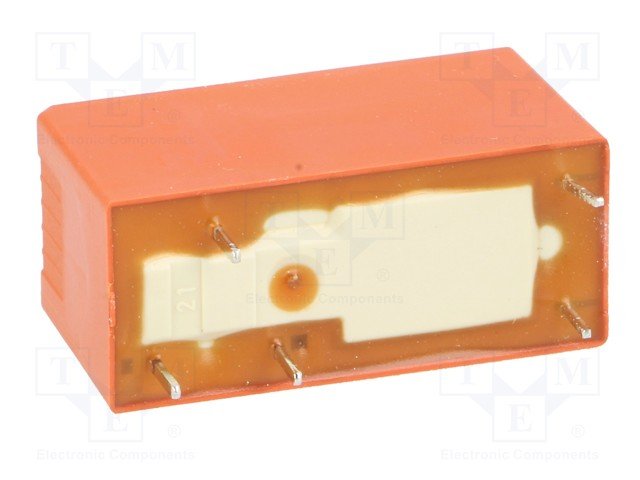

Apraksts

• Manufacturer TE Connectivity
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 12 A / 250 VAC
• DC contacts rating @R
• (at resistance load) 12 A / 24 VDC
• Contact current max. 12A
• Switched voltage max 400V AC, max 300V DC
• Relay variant miniature
• Mounting THT
• Coil resistance 360Ω
• Coil voltage min. 8.4V DC
• Operate time 7ms
• Body dimensions 29 x 15.7 x 12.7mm
• Release time 3ms
• Coil power consumption 400mW
• IP rating IP67
• Mechanical durability 30000000cycles
• Operating temperature -40...70°C
• Weight 14g
• Relay series RT1
• Switching capacity 3kVA
• Contact material AgNi

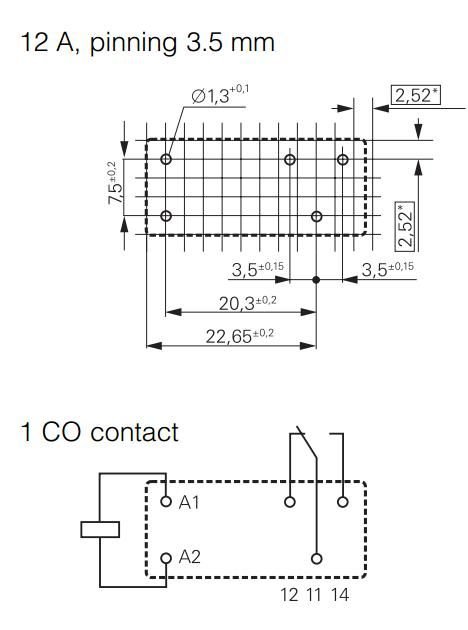

• Terminal pitch 3.5mm
• Coil current 33.3mA
• Height 15.7mm
• Number of pins 5
• Max surge current 25A

Parametri

TE Connectivity
12VDC
SPDT
12A/250VAC
12A/24VDC
uz pārslēgšanu
1
monostabilais
1
