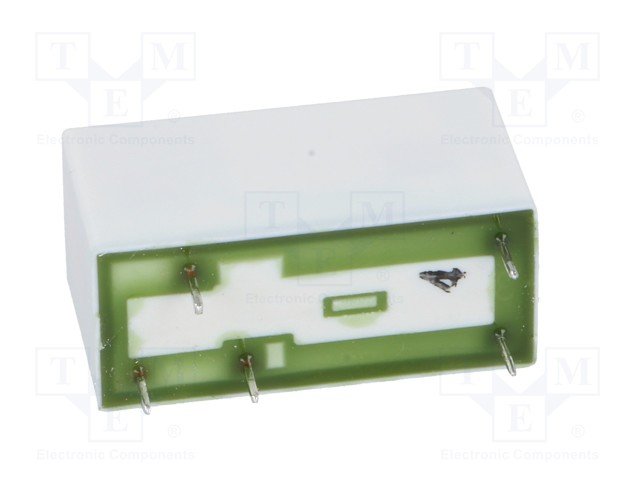

Apraksts

• Manufacturer RELPOL
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 12 A / 250 VAC
• DC contacts rating
• (at resistance load) 12 A / 24 VDC
• Contact current max. 12A
• Switched voltage max 440V AC, max 250V DC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 360Ω
• Coil voltage min. 8.4V DC
• Coil voltage max. 30.6V DC
• Operate time 7ms

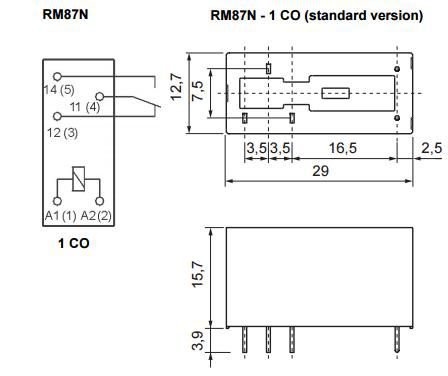

• Body dimensions 28.5 x 12.7 x 15.7mm
• Release time 3ms
• Coil power consumption 480mW
• Sealing IP67
• Operating temperature -40...70°C
• Relay series RM87N
• Contact resistance 100mΩ
• Terminal pitch 3.5mm

Parametri

RELPOL
12VDC
SPDT
12A/250VAC
12A/24VDC
uz pārslēgšanu
1
monostabilais
1
