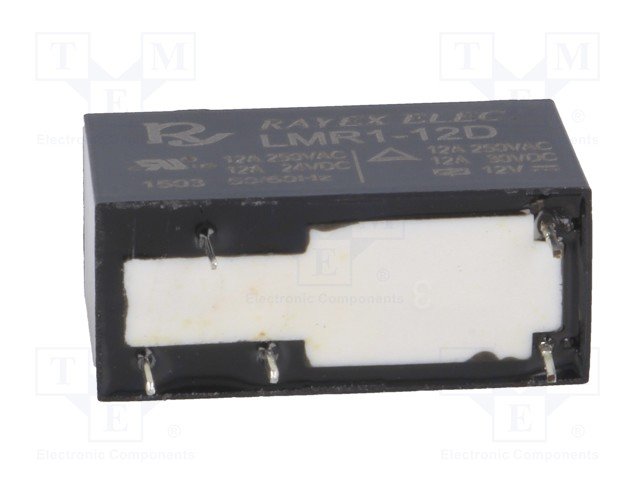

Apraksts

• Manufacturer RAYEX ELECTRONICS
• Type of relay electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R
• (at resistance load) 12A / 250VAC
• DC contacts rating @R
• (at resistance load) 12A / 30VDC
• Contact current max. 12A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 270Ω
• Operate time 15ms

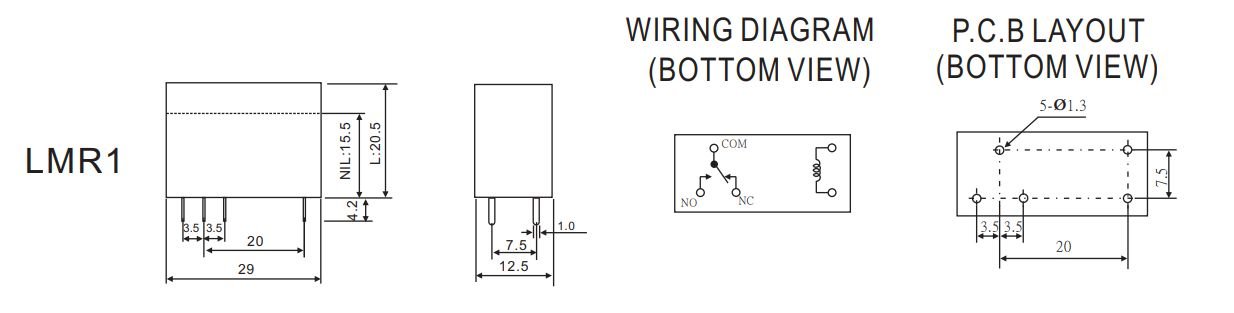

• Body dimensions 29 x 12.5 x 15.5mm
• Release time 10ms
• Coil power consumption 530mW
• Operating temperature -40...80°C
• Relay series LMR1
• Contact resistance 100mΩ
• Contact material AgCdO
• Terminal pitch 3.5mm

Parametri

RAYEX RAYEX ELECTRONICS
12VDC
SPDT
12A/250VAC
12A/30VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
