Apraksts

• Manufacturer OMRON
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• Contact current max. 16A
• Switched voltage max 250V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Operate time 0.6ms

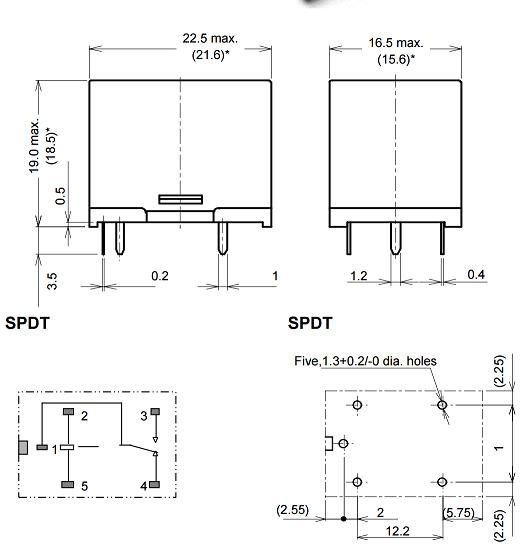

• Body dimensions 22.5 x 16.5 x 19mm
• Release time 7.2ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series G5LE-E
• Contact resistance 100mΩ
• Terminal pitch 2mm
• Coil current 33.3mA

Parametri

OMRON
12VDC
SPDT
16A/250VAC
10A/35VDC
uz pārslēgšanu
1
monostabilais
1
