Apraksts

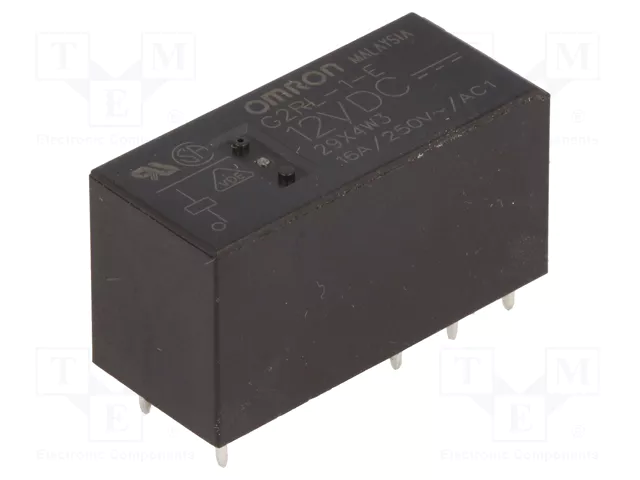

• Manufacturer OMRON Electronic Components
• Type of relay electromagnetic
• Contacts configuration SPDT
• Contacts configuration
• Rated coil voltage 12V DC
• Contact current max. 16A
• AC contacts rating @R(at resistive load) 16A / 250V AC
• at resistive load
• DC contacts rating @R(at resistive load) 16A / 24V DC
• at resistive load
• Relay series G2RL
• Switched voltage max. 300V DC, max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Operate time 15ms

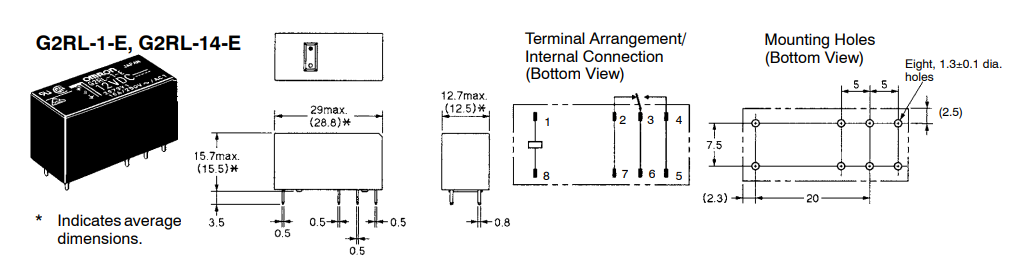

• Body dimensions 29x12,7x15,7mm
• Release time 5ms
• Operating temperature -40...85°C
• Contact resistance 100mΩ
• Terminal pitch 5mm
• Coil current 33,3mA
• Leads for PCB
• Enclosure description standard seal
• Masa bruto11.373 g

Parametri

OMRON
12VDC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
