Apraksts

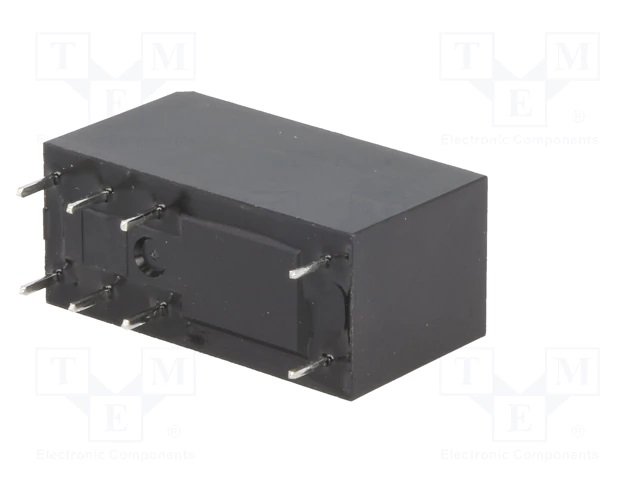

• Manufacturer HONGFA RELAY
• Type of relay electromagnetic
• Contacts configuration  SPDT
• Rated coil voltage 12V DC
• AC contacts rating @R  16A / 250V AC
• (at resistive load)
• DC contacts rating @R  16A / 24V DC
• (at resistive load)
• Contact current max. 16A
• Switched voltage max. 300V DC,  max. 440V AC
• Relay variant miniature
• Mounting PCB
• Coil resistance 360Ω
• Coil voltage min. 8.4V DC
• Coil voltage max. 18V DC
• Operate time 15ms
• Body dimensions 29x12.7x15.7mm
• Release time 8ms
• Coil power consumption 400mW
• Operating temperature -40...85°C
• Relay series HF115F
• Contact resistance 100mΩ
• Contact material AgNi
• Terminal pitch 5mm

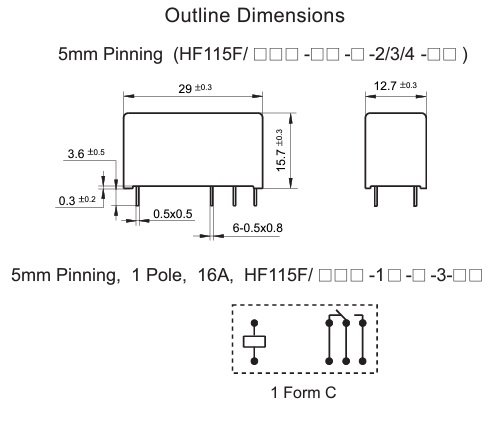

• Dimensions see
• Schematic diagram see
• Additional information
• Gross weight: 13.29 g
• Manufacturer part number: HF115F/012-1ZS3B

Parametri

HONGFA RELAY
12VDC
SPDT
16A/250VAC
16A/24VDC
uz pārslēgšanu
monostabilais
1
1

Papildu dokumentācija
