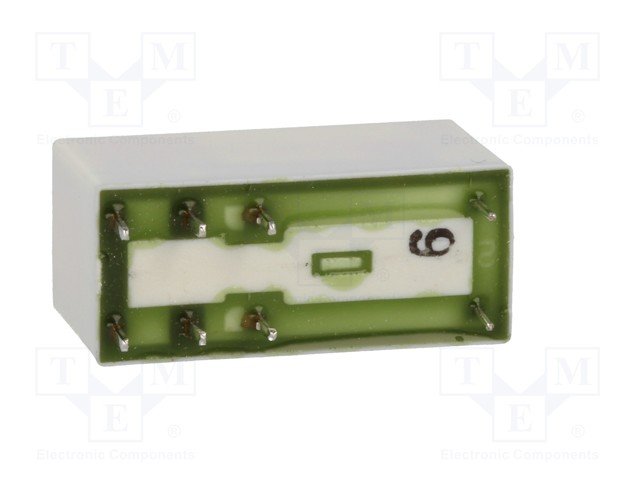

Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL
Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL
Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL
Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Relejs DC12V, SPDT, 16A/250VAC, 16A/24VDC, 360R(33mA), viens kontakts uz pārslēgšanu, AgNi, 29x12.7x15.7mm, RELPOL

Cena: 2.27 €
00027628
RM85-3011-35-1012
15
  • Apraksts

    • Manufacturer RELPOL
    • Type of relay electromagnetic
    • Contacts configuration  SPDT
    • Rated coil voltage 12V DC
    • AC contacts rating @R  16A / 250V AC
    • (at resistive load)
    • DC contacts rating @R  16A / 24V DC
    • (at resistive load)
    • Contact current max. 16A
    • Switched voltage max. 250V DC,  max. 440V AC
    • Relay variant miniature
    • Mounting PCB
    • Coil resistance 360Ω
    • Coil voltage min. 8.4V DC
    • Coil voltage max. 30.6V DC
    • Operate time 8ms

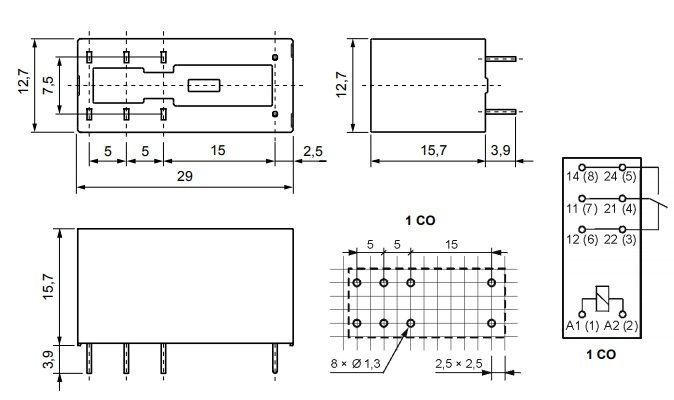

    • Body dimensions 29x12.7x15.7mm
    • Release time 3ms
    • Coil power consumption 480mW
    • IP rating IP67
    • Operating temperature -40...85°C
    • Relay series RM85
    • Contact resistance 100mΩ
    • Contact material AgNi
    • Terminal pitch 5mm
    • Related items GD50,  GZ80,  GZM80,  GZM80-BK,  GZT80,  PW80
    • OEM number 600020
    • Body colour white
    • Current rating 16A
    • Output configuration see
    • Additional information
    • Gross weight: 13.2 g
    • Manufacturer part number: RM85-2011-35-1012

    Parametri

    RELPOL
    12VDC
    SPDT
    16A/250VAC
    16A/24VDC
    uz pārslēgšanu
    1
    monostabilais
    1
