Apraksts

• Specification
• Relay type electromagnetic

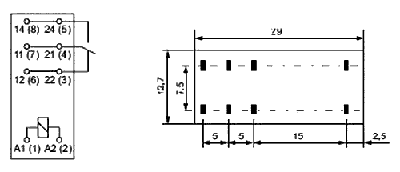

• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 30 VDC
• Contact current max. 16A
• Switched voltage max 250V AC, max 30V DC
• Relay variant miniature
• Mounting PCB
• Coil resistance 270Ω;
• Operate time 15ms
• Body dimensions 29.4 x 12.5 x 25.5mm
• Release time 10ms
• Coil power consumption 530mW
• Operating temperature -40...80°C

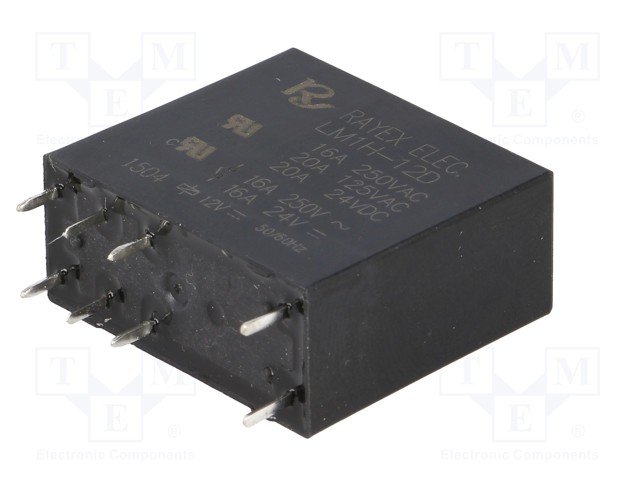

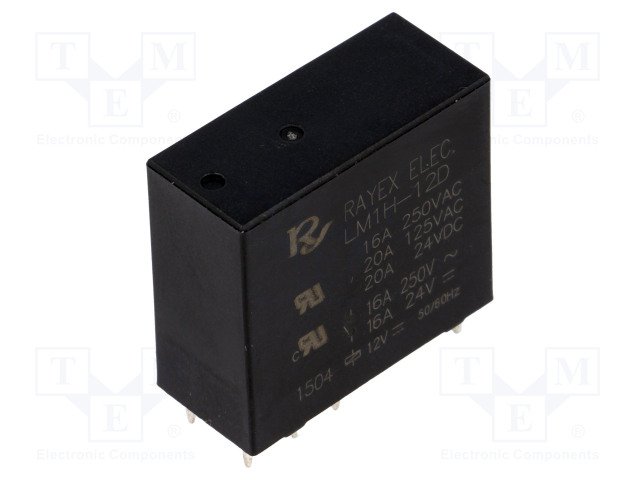

• Relay series LM1
• Contact resistance 100mΩ;
• Contact material AgCdO
• Contacts pitch 5mm
• Coil current 44.4mA

Parametri

12VDC
SPDT
16A/250VAC
16A/30VDC
uz pārslēgšanu
1
RAYEX RAYEX ELECTRONICS
monostabilais
1
