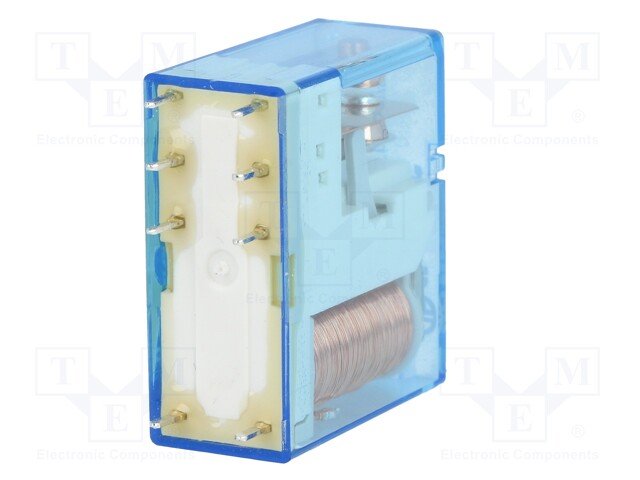

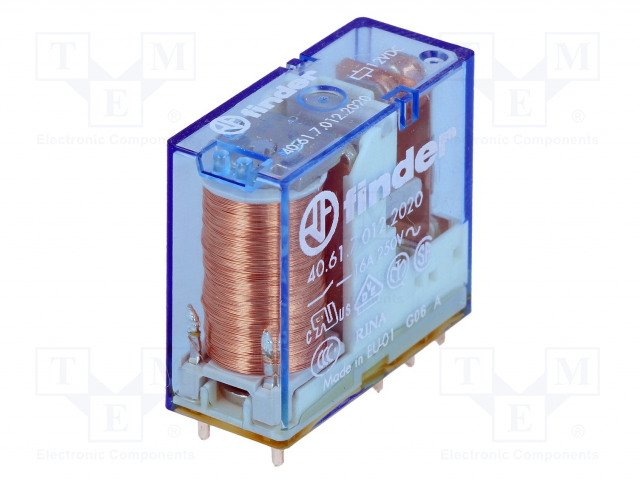

Apraksts

• Specification
• Relay type electromagnetic
• Contacts configuration SPDT
• Rated coil voltage 12V DC
• AC contacts rating
• (at resistance load) 16 A / 250 VAC
• DC contacts rating
• (at resistance load) 16 A / 30 VDC
• Contact current max. 30A
• Switched voltage max 400V AC, max 220V DC
• Relay variant miniature
• Mounting PCB, socket
• Coil resistance 300Ω;
• Body dimensions 29 x 12.4 x 25mm
• Coil power consumption 650mW
• Operating temperature -40...85°C
• Relay series 40
• Contact material AgCdO
• Contacts pitch 5mm
• Coil current 40mA

Parametri

FINDER
12VDC
SPDT
16A/250VAC
16A/30VDC
uz pārslēgšanu
1
monostabilais
1
